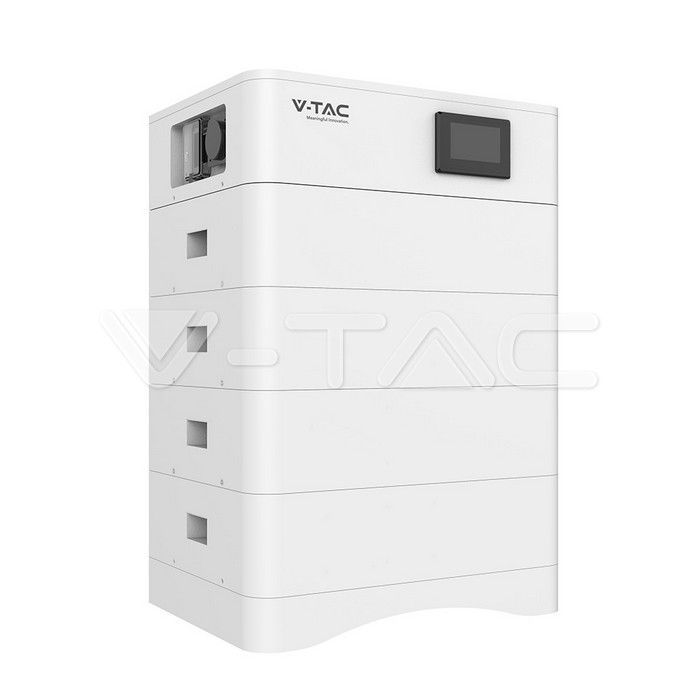

V-TAC 20,48 kWh VT-OHS20K-100 120024

V-TAC 20,48 kWh VT-OHS20K-100 120024

Kapazität
20,5 kWh
Verfügbarkeit
Auf Lager
Anzahl der Angebote: 2
Mindestbestellung
1 Stk.
Incoterms
EXW

Nettopreis nach Menge

ab 4 618,90 €

Staffelpreise sind für registrierte Unternehmen sichtbar.

Keine Zahlung jetzt. Der Transport wird nach der Bestellung kalkuliert und von Ihnen freigegeben.

Beschreibung

Batterieset V-TAC VT-OHS20K-100 120024 mit 20,48 kWh Kapazität (4 Module), LiFePO4 (LFP), Hochvolt (HV), Spannung 204,8 V. Kommunikation CAN, Schutzart IP65, Entladetiefe 80 %. Anwendung: Gewerbe und Industrie (C&I). Abmessungen 849 × 420 × 590 mm (H × B × T), Gewicht 207 kg, Garantie 10 Jahre.

Herstellerangaben

Smaller Footprint higher energy density benefit from latest LFP technology Expandable Module design Maximum 5.12kwh*10S*6P Monitor Real-time monitoring of battery charging and discharging, online system updates and maintenance

Technische Daten

Produktdetails

SerieStackable LiFePo4 Battery System
Garantie10 Jahre
Anzahl Batteriemodule4
Entladetiefe (DoD)80 %
Schutzart (IP)IP65
KommunikationsprotokollCAN
Systemtyp (HV / LV)Hochvolt (HV)

Hauptparameter

Kapazität20,48 kWh
Batteriespannung204,8 V
ZellentechnologieLiFePO4 (LFP)
AnwendungGewerbe und Industrie (C&I)

Maße und Gewicht

Höhe849 mm
Breite420 mm
Länge590 mm
Gewicht207 kg
