Deye 12,03 kWh GB-W-Pack12-2-A3

Kapazität: 12,0 kWh
Verfügbarkeit: Auf Lager
: Anzahl der Angebote: 6
Mindestbestellung: 1 Stk.
Incoterms: EXW

Downloads

PDF Datenblatt — gb-w 6,0 MB

Nettopreis nach Menge

ab 1 650,00 €

Staffelpreise sind für registrierte Unternehmen sichtbar.

Keine Zahlung jetzt. Der Transport wird nach der Bestellung kalkuliert und von Ihnen freigegeben.

Beschreibung

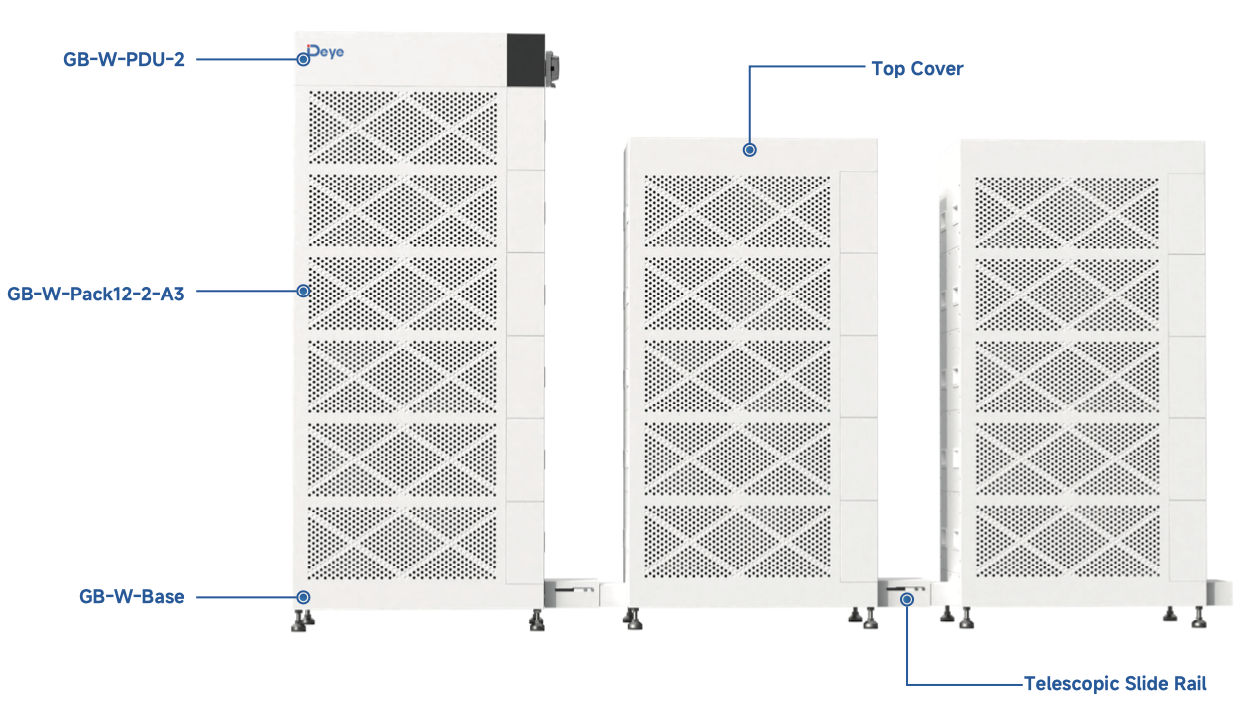

Batteriemodul Deye GB-W-Pack12-2-A3 mit 12,03 kWh Kapazität, LiFePO4 (LFP), Niedervolt (LV), Spannung 51,2 V. Kommunikation CAN / RS485, Schutzart IP20, Entladetiefe 90 %. Anwendung: Privathaushalt. Abmessungen 270 × 690 × 436 mm (H × B × T), Gewicht 92,2 kg.

Herstellerangaben

High Integration, Easy Scalability ·Modular cable-free stacking design enables eﬃcient and convenient installation, drastically cutting installation costs. ·The battery pack is equipped with a quick-release service panel; wearing parts replaceable on-cluster without battery removal — eﬃcient, hassle-free maintenance. ·Single-cluster capacity ranges from 60 to 192kWh, covering diverse energy storage scenarios for small and medium commercial & industrial applications. High Performance, Ultimate Safety ·Supports a maximum continuous discharge current of 230A, highly compatible with DEYE 30‒125kW high-voltage inverters and 100/125kW PCS. ·Cell-level thermal isolation, pack-level aerosol fire suppression system, and dual temperature monitoring for cells and connections build a full-dimensional safety protection barrier. ·Equipped with a natural air cooling system with directional air ducts and dust filtration, the system keeps cell temperature diﬀerence below 6℃, ensuring cycle life and extending service life. Intelligent Management, Simplified O&M ·Adopts pack-level and cell-level balancing technology, supporting seamless pack replacement for capacity expansion to simplify operation and maintenance. ·DEYE integrated BMS+EMS collaborative control realizes real-time full-link linkage from cells to the system, intelligently optimizing power consumption strategies. ·Supports dual access via local Bluetooth and remote cloud platform, providing 7×24h real-time monitoring, fault diagnosis and remote upgrade.

Technische Daten

Produktdetails

Serie	GB-W
Systemtyp (HV / LV)	Niedervolt (LV)
Entladetiefe (DoD)	90 %
Schutzart (IP)	IP20
Max. Lade-/Entladetemperatur	55/55 °C
Min. Lade-/Entladetemperatur	0/-20 °C
Kommunikationsprotokoll	CAN / RS485
