SMA Data Manager M Lite

SMA Data Manager M Lite

Verfügbarkeit
Auf Lager
Anzahl der Angebote: 1
Mindestbestellung
1 Stk.
Incoterms
CIF, EXW, FCA

Downloads

Nettopreis nach Menge

ab 825,00 €

Staffelpreise sind für registrierte Unternehmen sichtbar.

Keine Zahlung jetzt. Der Transport wird nach der Bestellung kalkuliert und von Ihnen freigegeben.

Beschreibung

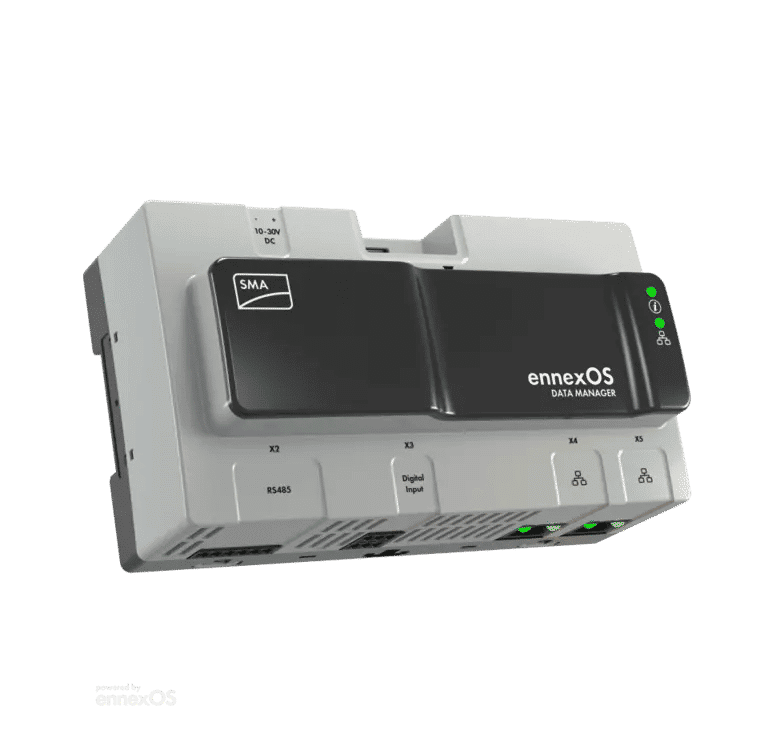

Wechselrichter-Zubehör SMA Data Manager M Lite: Datenmanager. Abmessungen 89,7 × 161,1 × 67,2 mm (H × B × T).

Herstellerangaben

In combination with the Sunny Portal powered by ennexOS, the Data Manager M enables monitoring, management and grid- compliant power control in decentralized PV systems. Thanks to flexible expansion options, the Data Manager M is already well-equipped for business models in the energy market of the future. Whether as a cost-effective Lite variant for smaller systems with up to five devices and 30 kVA, or as an expanded solution for up to 50 devices and an installed inverter power of 2.5 MVA in closed-loop control mode or 7.5 MVA in open-loop control mode or monitoring mode only — the Data Manager is the ideal professional system interface for electric utility companies, direct sellers, service technicians and PV system operators. Coordinated user interfaces and intuitive assistance functions simplify operation, parameterization and commissioning. Both variants are modularly expandable with many additional functions and interfaces.

Technische Daten

Produktdetails

SerieDATA MANAGER M/ M LITE

Hauptparameter

TypDatenmanager

Daten aus dem Herstellerdatenblatt

Betriebstemperaturbereich–20 °C ~ +60 °C
Schutzart (IP)IP20 (NEMA 1)
Breite161,1 mm
Höhe89,7 mm
Tiefe67,2 mm
MontageartTop-hat rail mounting / wall mounting
AnzeigeLEDs for system and communication status
Produktgarantie2 Jahre
