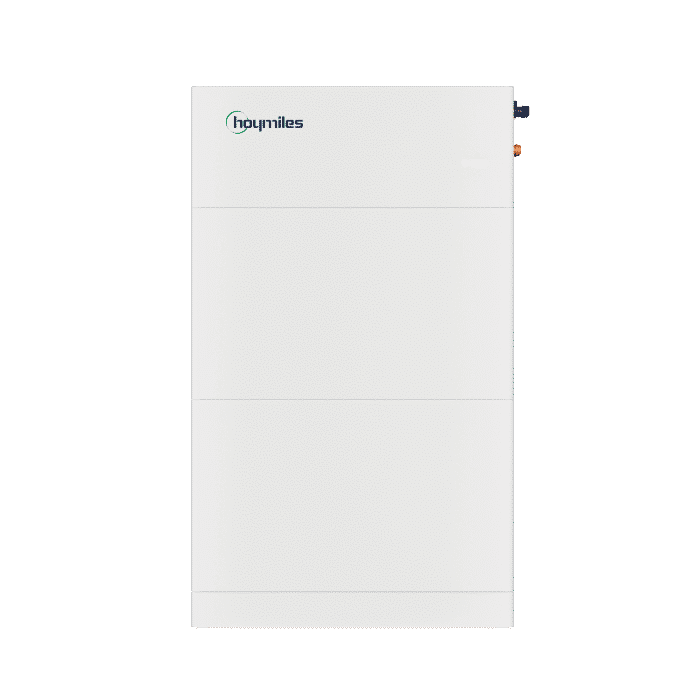

Hoymiles 10,24 kWh LB-10S-G2

Hoymiles 10,24 kWh LB-10S-G2

Kapazität
10,2 kWh
Verfügbarkeit
Auf Lager
Anzahl der Angebote: 4
Mindestbestellung
1 Stk.
Incoterms
CIF, EXW, FCA

Downloads

Nettopreis nach Menge

ab 1 898,28 €

Staffelpreise sind für registrierte Unternehmen sichtbar.

Keine Zahlung jetzt. Der Transport wird nach der Bestellung kalkuliert und von Ihnen freigegeben.

Beschreibung

Batterieset Hoymiles LB-10S-G2 mit 10,24 kWh Kapazität (2 Module), LiFePO4 (LFP), Niedervolt (LV), Spannung 51,2 V. Betriebsspannung 44,8–58,4 V, Entladetiefe 90 %, Kommunikation CAN, RS485, Schutzart IP66. Anwendung: Privathaushalt. Abmessungen 1070 × 640 × 145 mm (H × B × T), Gewicht 107 kg, Garantie 5 Jahre.

Herstellerangaben

The LB-(5-20)S-G2 series is a type of deep cycle and high capacity LFP battery with improved safety, long lifespan, and optimized user experience. It is designed with an IP66 rating for more flexible and easier installation.

Technische Daten

Produktdetails

Garantie5 Jahre
Anzahl Batteriemodule2
Spannung min.44,8 V
Spannung max.58,4 V
Entladetiefe (DoD)90 %
Schutzart (IP)IP66
KommunikationsprotokollCAN, RS485
Systemtyp (HV / LV)Niedervolt (LV)

Hauptparameter

Kapazität10,24 kWh
Batteriespannung51,2 V
ZellentechnologieLiFePO4 (LFP)
AnwendungPrivathaushalt

Maße und Gewicht

Höhe1070 mm
Breite640 mm
Länge145 mm
Gewicht107 kg
