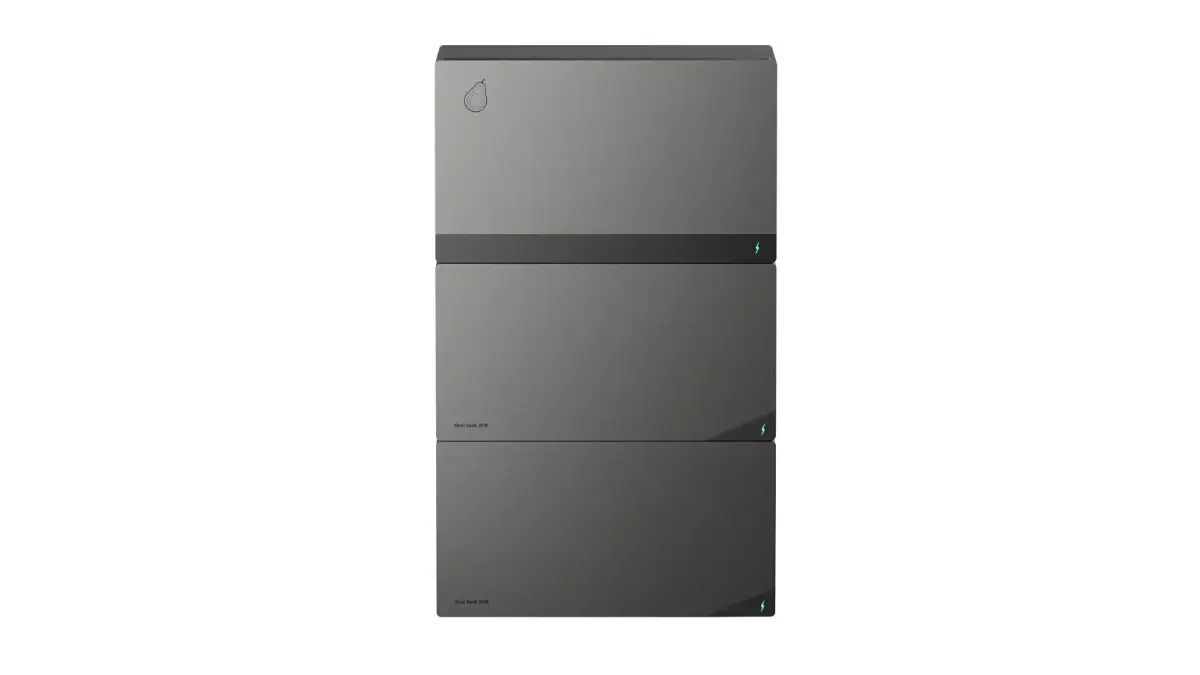

FoxESS 2.11 kWh Avocado 22 Pro-M

FoxESS 2.11 kWh Avocado 22 Pro-M

Phases
1‑phase
Capacity
2.1 kWh
Availability
On order
Minimum order
1 pcs

Downloads

Price on request

We will check availability and get back to you with this information.

Nothing to pay now.

Description

Energy storage system FoxESS Avocado 22 Pro-M with 2.11 kWh capacity, LiFePO4 (LFP), low voltage (LV), single-phase. Operating voltage 31.9–40.15 V, depth of discharge 90%, communication Wi-Fi, Bluetooth, LAN, RS485, IP rating IP65. Battery voltage 35.2 V. Dimensions 220 × 270 × 420 mm (H × W × D), weight 24 kg, warranty 10 years.

Manufacturer information

FULLY INTEGRATED STORAGE SYSTEM Seamlessly integrated, truly all-in-one solution. LESS IS MORE Sleek, minimalist design for effortless one-step installation. EASY INSTALLATION Flexible configuration, plug and play set-up, built-in fuse protection. IP65 RATED High level of protection, suitable for outdoor installation.

Technical data

Product details

SeriesAvocado 22 Pro
Warranty10 years
Min. voltage31.9 V
Max. voltage40.15 V
Depth of discharge (DoD)90 %
IP ratingIP65
Communication protocolWi-Fi, Bluetooth, LAN, RS485
System type (HV / LV)Low voltage (LV)

Main parameters

Capacity2.11 kWh
Battery voltage35.2 V
Cell technologyLiFePO4 (LFP)
Number of phases1

Dimensions and weight

Height220 mm
Width270 mm
Length420 mm
Weight24 kg
