from 1,870.00 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

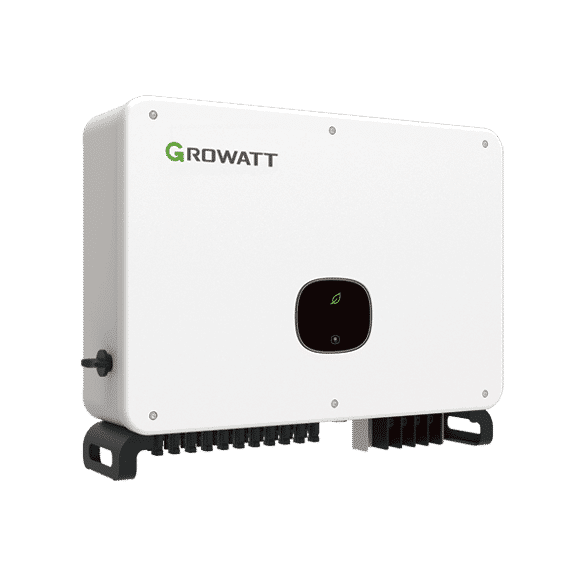

On-grid inverter Growatt MAC 50KTL3-X LV rated 50 kW, three-phase, 3 MPPT. Max. DC voltage 1100 V, maximum efficiency 98.8%, European efficiency 98.5%. IP rating IP66, operating temperature −25 to 60 °C. Dimensions 508 × 680 × 281 mm (H × W × D), weight 52 kg, warranty 5 years.
| Series | Mac 50-70KTL3-X LV/MV |
|---|---|
| Product warranty | 5 years |
| Series AC power range | 55.5-77.7 kW |
| Max. DC power | 65 kW |
| Max. DC voltage | 1100 V |
| Max. DC current | 130 A |
| Strings per MPPT | 3/4/3 |
| DC inputs | 10 |
| Connectors | MC4 |
| Max. AC power | 55.5 kW |
| AC output voltage range | 340-440 V |
| Nominal AC voltage | 400 V |
| Max. AC current | 80.5 A |
| Frequency range | 50,60 /±5 Hz |
| Frequency | 50/60 Hz |
| Power factor | 0.8 leading to 0.8 lagging |
| Maximum efficiency | 98.8 % |
| European efficiency | 98.5 % |
| Operating temperature range | -25 ~ +60 °C |
| IP rating | IP66 |
| Display | LED |
| Protection features | Short Circuit Protection, Reverse Polarity Protection, Surge Protection |
| Inverter type | On-grid |
|---|---|
| Number of MPPT | 3 |
| Inverter power | 50 kW |
| Number of phases | 3 |
| Height | 508 mm |
|---|---|
| Width | 680 mm |
| Depth | 281 mm |
| Weight | 52 kg |
