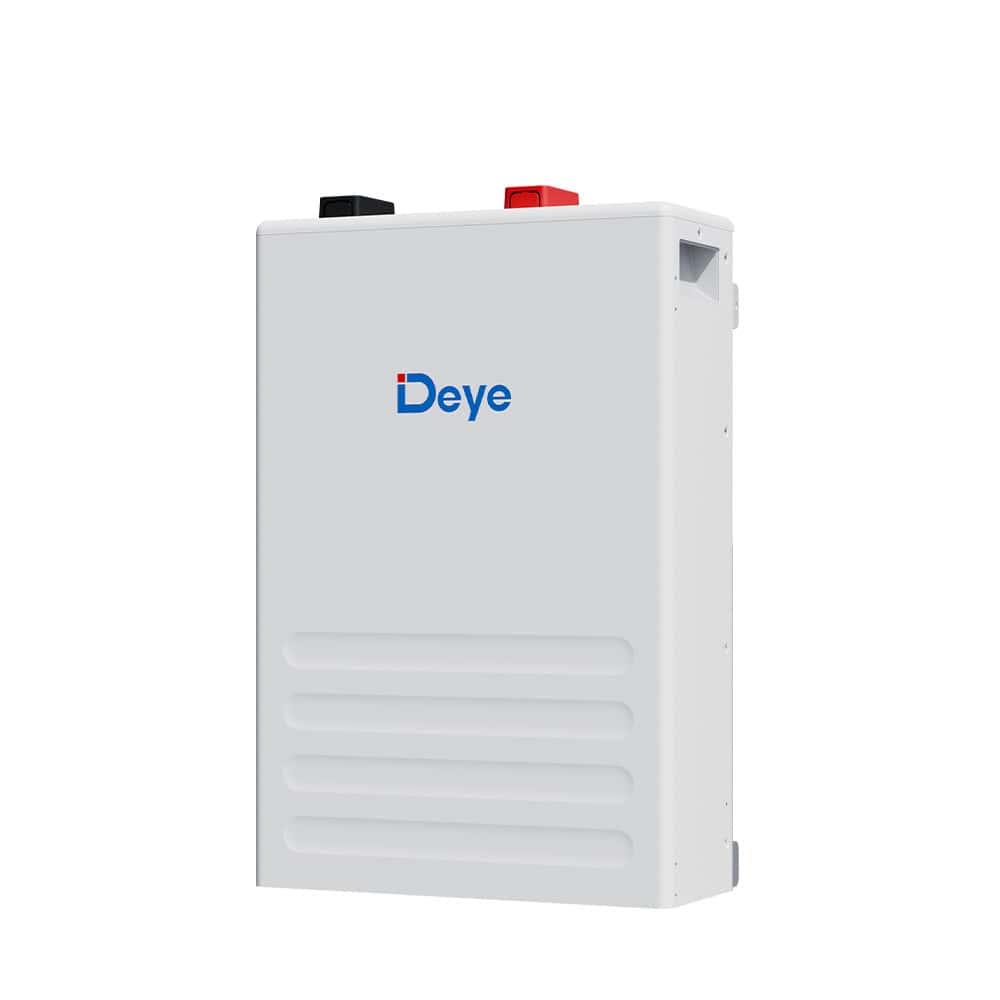

Deye 5.12 kWh SE-F5.1 Pro-L

Capacity: 5.1 kWh
Availability: On order
Minimum order: 1 pcs

Downloads

PDF Datasheet — se-f52020se-f520plus2020se-f122020se-f16 8.2 MB

Price on request

We will check availability and get back to you with this information.

Nothing to pay now.

Description

Battery module Deye SE-F5.1 Pro-L with 5.12 kWh capacity, LiFePO4 (LFP), low voltage (LV), voltage 51.2 V. Operating voltage 44.8–57.6 V, depth of discharge 90%, communication CAN2.0, RS485, Bluetooth+APP, IP rating IP21. Dimensions 548 × 370 × 140 mm (H × W × D), weight 41 kg, warranty 5 years.

Manufacturer information

Comprehensive Protection Advanced BMS with active fuse Superior Performance Support Max. 1C charge & 1.2C discharge (SE-F5 & F5 Plus), GaN MOSFETs: 50% loss reduction, high-temp resistance Optimized Energy Density Integrated PACK: reduced line loss, enhanced energy density Flexible Expansion Max. 32 units in parallel Easy Maintenance Auto-networking, Local monitoring mode for battery, remote monitoring mode for ESS Reliable Durability Operates reliably in -20℃ to 55℃, natural cooling

Technical data

Product details

Series	SE-F5 & SE-F5 Plus & SE-F12 & SE-F16
Warranty	5 years
System type (HV / LV)	Low voltage (LV)
Min. voltage	44.8 V
Max. voltage	57.6 V
Depth of discharge (DoD)	90 %
IP rating	IP21
Max. charge / discharge temperature	55/55 °C
Min. charge / discharge temperature	-10/-20 °C
Communication protocol	CAN2.0, RS485, Bluetooth+APP
