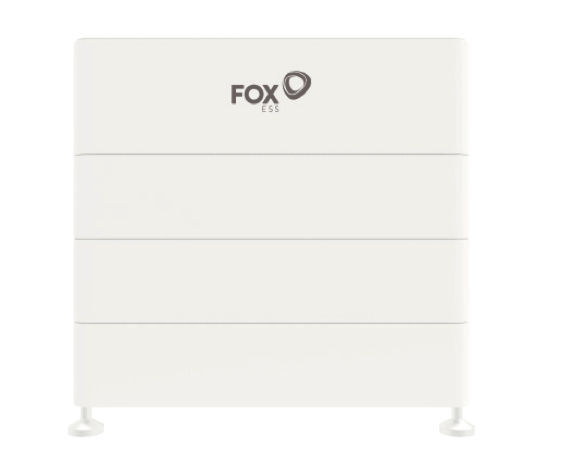

FoxESS 4.8 kWh CS4800

Capacity: 4.8 kWh
Availability: On order
Minimum order: 1 pcs

Downloads

PDF Datasheet — ecs20battery20storage20system 0.6 MB

Price on request

We will check availability and get back to you with this information.

Nothing to pay now.

Description

Battery module FoxESS CS4800 with 4.8 kWh capacity, LiFePO4 (LFP), high voltage (HV), voltage 44.8 V. Operating voltage 40.6–51.5 V, depth of discharge 90%, communication CAN, IP rating IP65. Dimensions 138 × 570 × 380 mm (H × W × D), weight 39 kg.

Manufacturer information

The ECS is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 32.61 kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.

Technical data

Product details

Series	ECS BATTERY STORAGE SYSTEM
System type (HV / LV)	High voltage (HV)
Min. voltage	40.6 V
Max. voltage	51.5 V
Depth of discharge (DoD)	90 %
IP rating	IP65
Max. charge / discharge temperature	55/55 °C
Min. charge / discharge temperature	0/-10 °C
Communication protocol	CAN
