from 61.99 € 0.133 €/Wp
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

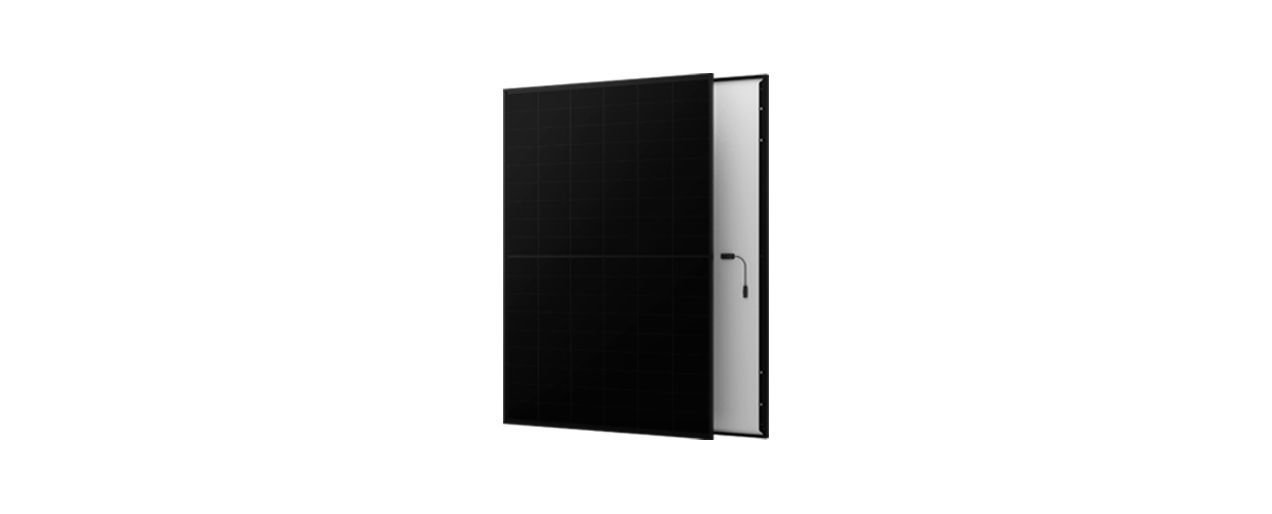

PV module Aiko AIKO-A465-MAH54Mb rated 465 Wp. Cells: N-type (108 pcs), monofacial, Full black, module efficiency 23.3% (STC). Dimensions 1757 × 1134 × 30 mm (H × W × D), weight 21.5 kg.
| Series | NEOSTAR Series AIKO-A440-470-MAH54Mb |
|---|---|
| Series power range | 440-470 Wp |
| Voltage at max. power Vmpp (STC) | 34.68 V |
| Current at max. power Impp (STC) | 13.41 A |
| Open-circuit voltage Voc (STC) | 41.12 V |
| Short-circuit current Isc (STC) | 14.29 A |
| Module efficiency (STC) | 23.3 % |
| Power tolerance + (STC) | 3 % |
| Temperature coefficient of Pmax | -0.26 %/°C |
| Temperature coefficient of Voc | -0.22 %/°C |
| Temperature coefficient of Isc | 0.05 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 25 A |
| Number of cells | 108 |
| Glass type | Tempered glass |
| Glass thickness | 3.2 mm |
| Frame | Anodised aluminium alloy |
| Connector type | MC4-EVO2 |
| Cable cross-section | 4 mm² |
| Cable length | 1200 mm |
| Cell technology | Back contact |
| Module power | 465 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Full black |
| Module type | Monofacial |
| Height | 1757 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 21.5 kg |
