from 388.74 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

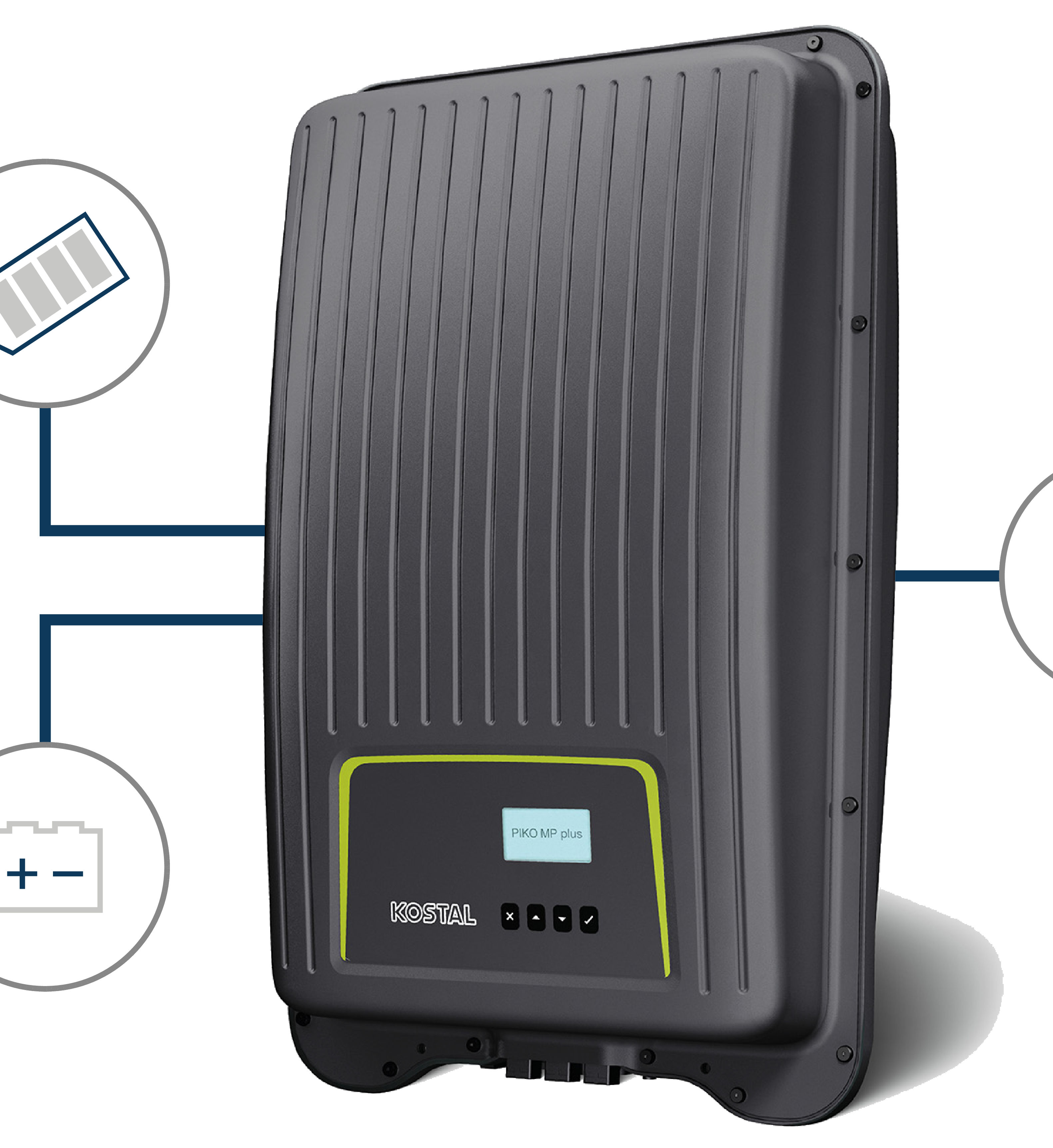

Hybrid inverter Kostal PIKO MP Plus 3.6-2 rated 3.68 kW, single-phase, 2 MPPT. Max. DC voltage 750 V, MPP voltage range 75 to 600 V, maximum efficiency 97%, European efficiency 96.3%. IP rating IP65, operating temperature −25 to 60 °C, cooling: active cooling. Dimensions 657 × 399 × 222 mm (H × W × D), weight 14 kg, warranty 10 years.
| Series | PIKO MP plus |
|---|---|
| Product warranty | 10 years |
| Series AC power range | 3-5 kW |
| Max. DC power | 5.6 kW |
| Max. DC voltage | 750 V |
| Nominal DC voltage | 350 V |
| Min. DC start-up voltage | 75 V |
| Max. DC current | 13 A |
| MPP voltage range | 75-600 V |
| DC inputs | 2 |
| Connectors | SUNCLIX plug |
| Max. AC power | 3.68 kW |
| AC output voltage range | 184-288 V |
| Nominal AC voltage | 230 V |
| Max. AC current | 16 A |
| Nominal AC current | 16 A |
| Frequency range | 45-65 Hz |
| Frequency | 50/60 Hz |
| Power factor | 0.8 leading to 0.8 lagging |
| Distortion (THD) (< X%) | 3 |
| Maximum efficiency | 97 % |
| European efficiency | 96.3 % |
| AC output connection | Wieland RST25i3 |
| Night Power Consumption (< W) | 3 |
| Noise level | 31 dB(A) |
| Operating temperature range | -25 ~ +60 °C |
| Transformer | Transformerless |
| IP rating | IP65 |
| Relative humidity | 0-100 % |
| Cooling | Active cooling |
| Max. altitude | 2000 m |
| Interfaces | Ethernet LAN (RJ45); RS485 (RJ45); Connection of energy meter for collecting energy data (Modbus RTU) (RJ45) |
| Inverter type | Hybrid |
|---|---|
| Number of MPPT | 2 |
| Inverter power | 3.68 kW |
| Number of phases | 1 |
| Height | 657 mm |
|---|---|
| Width | 399 mm |
| Depth | 222 mm |
| Weight | 14 kg |
