from 72.99 € 0.147 €/Wp
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

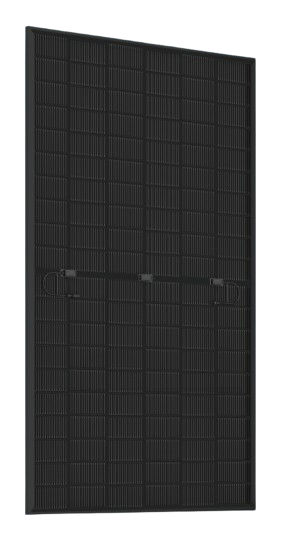

PV module JA Solar JAM60D41-495/LB rated 495 Wp. Cells: N-type (120 pcs), bifacial, Full black, module efficiency 22.4% (STC). Product warranty 12 years, power warranty: 87.4% after 30 years. Dimensions 1953 × 1134 × 30 mm (H × W × D), weight 27.3 kg.
| Series | JAM60D41-485-510/LB |
|---|---|
| Series power range | 485-510 Wp |
| Warranty | 12 years |
| Power warranty — point 2 (years, % output) | 30, 87.4 |
| Voltage at max. power Vmpp (STC) | 36.7 V |
| Current at max. power Impp (STC) | 13.49 A |
| Open-circuit voltage Voc (STC) | 43.65 V |
| Short-circuit current Isc (STC) | 14.36 A |
| Module efficiency (STC) | 22.4 % |
| Power tolerance + (STC) | 3 % |
| Temperature coefficient of Pmax | -0.29 %/°C |
| Temperature coefficient of Voc | -0.25 %/°C |
| Temperature coefficient of Isc | 0.045 %/°C |
| Max. system voltage | 1500 V |
| Number of cells | 120 |
| Glass thickness | 2+2 mm |
| Bypass diodes | 3 |
| Junction box IP rating | IP68 |
| Connector type | MC4-EVO2A |
| Cable cross-section | 4 mm² |
| Cable length | 1200 mm |
| Cell technology | Front contact |
| Module power | 495 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Full black |
| Module type | Bifacial |
| Height | 1953 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 27.3 kg |
