from 1,351.90 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

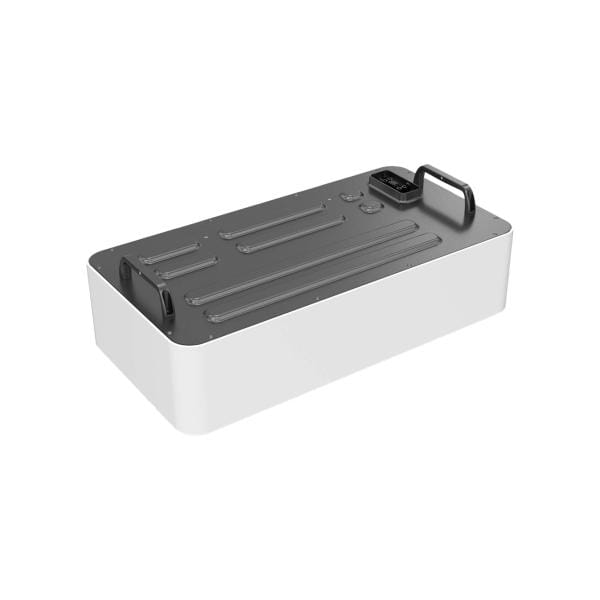

Battery module Sungrow SBH 5kWh, LiFePO4 (LFP), high voltage (HV), voltage 70.4 V. Operating voltage 59.4–80.3 V, communication CAN, IP rating IP55. Application: residential. Dimensions width 350 mm, length 675 mm, weight 45 kg, warranty 10 years.
| Weight | 45 kg |
|---|---|
| Series | SBH Series |
| Warranty | 10 years |
| System type (HV / LV) | High voltage (HV) |
| Min. voltage | 59.4 V |
| Max. voltage | 80.3 V |
| IP rating | IP55 |
| Max. charge / discharge temperature | 50/50 °C |
| Min. charge / discharge temperature | 0/-20 °C |
| Communication protocol | CAN |
| Capacity | 5 kWh |
|---|---|
| Battery voltage | 70.4 V |
| Cell technology | LiFePO4 (LFP) |
| Application | Residential |
| Width | 350 mm |
|---|---|
| Length | 675 mm |
