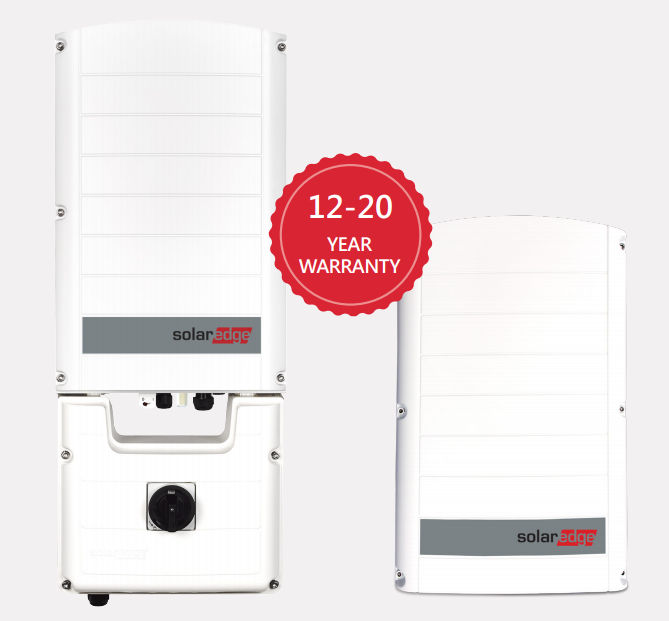

SolarEdge 15 kW SE15K

SolarEdge 15 kW SE15K

Power
15 kW
Phases
3‑phase
Availability
On order
Minimum order
1 pcs

Downloads

Price on request

We will check availability and get back to you with this information.

Nothing to pay now.

Description

On-grid inverter SolarEdge SE15K rated 15 kW, three-phase. Max. DC voltage 900 V, maximum efficiency 98%, European efficiency 97.6%. IP rating IP65, operating temperature −20 to 60 °C. Dimensions 540 × 315 × 260 mm (H × W × D), weight 33.2 kg.

Manufacturer information

Superior efficiency (98%) Small, lightest in its class, and easy to install Built-in module-level monitoring Internet connection through Ethernet or wireless IP65 – outdoor and indoor installation Fixed voltage inverter for longer strings Smart Energy Management control Optional intergrated DC Safety Unit – eliminates the need for external DC isolators (SE25K and SE27.6K only) Optional DC surge protection and DC fuses (SE25K and SE27.6K only)

Technical data

Product details

SeriesSE 12.5-27.6K
Product warranty12-20 years
Max. DC power20.25 kW
Max. DC voltage900 V
Max. DC current22 A
DC inputs2
ConnectorsMC4
Max. AC power15 kW
AC output voltage range184-264.5 V
Nominal AC voltage220/380; 230/400 V
Max. AC current23 A
Frequency50/60 Hz
Maximum efficiency98 %
European efficiency97.6 %
Operating temperature range-20 ~ +60 °C
IP ratingIP65

Main parameters

Inverter typeOn-grid
Inverter power15 kW
Number of phases3

Dimensions and weight

Height540 mm
Width315 mm
Depth260 mm
Weight33.2 kg
