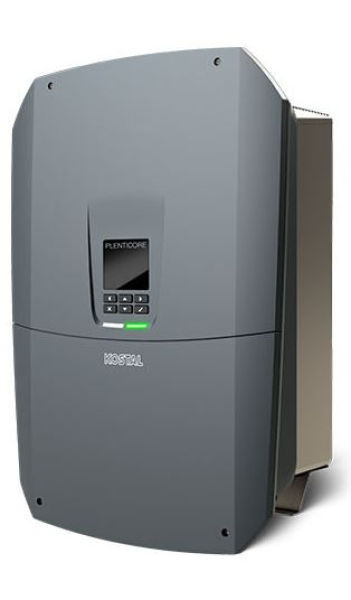

Kostal 3 kW PLENTICORE MP G3 3.0

Power: 3 kW
Phases: 1‑phase
Availability: On order
Minimum order: 1 pcs

Downloads

PDF Datasheet — plenticore20mp20g32030-70 0.7 MB

Price on request

We will check availability and get back to you with this information.

Nothing to pay now.

Description

Hybrid inverter Kostal PLENTICORE MP G3 3.0 rated 3 kW, single-phase, 2 MPPT. Max. DC voltage 1000 V, maximum efficiency 97.7%, European efficiency 96.5%. IP rating IP65, operating temperature −20 to 60 °C. Dimensions 561 × 409 × 237 mm (H × W × D), weight 18.6 kg, warranty 10 years.

Manufacturer information

Can be used universally as PV, hybrid or battery inverter Optionally releaseable Battery input1, 2)) Optional power upgrade1) Compatibility with various high-voltage batteries2) Backup power capable (backup function) with external switchover device 2-3 MPP trackers for maximum flexibility Extended MPP range - perfect for repowering

Technical data

Product details

Series	PLENTICORE MP G3 3.0-7.0
Product warranty	10 years
Series AC power range	3-7 kW
Max. DC voltage	1000 V
Max. DC current	17 A
DC inputs	2
Max. AC power	3 kW
Nominal AC voltage	230 V
Max. AC current	19.3 A
Frequency	50 Hz
Maximum efficiency	97.7 %
European efficiency	96.5 %
Operating temperature range	-20 ~ +60 °C
IP rating	IP65
