from 238.36 € 0.404 €/Wp
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

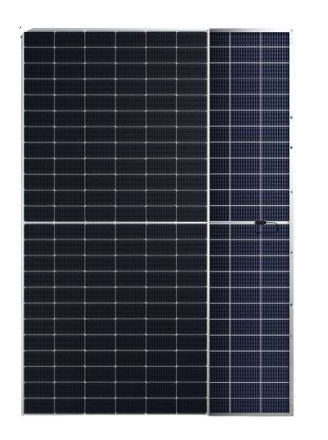

PV module FuturaSun FU 590 MV Silk Nova Duetto rated 590 Wp, Silk Nova Duetto FU 565-590 MV series. Cells: N-type (144 pcs), bifacial, silver frame, module efficiency 22.84% (STC). Product warranty 15 years, power warranty: 92% after 20 years and 87% after 30 years. Dimensions 2278 × 1134 × 30 mm (H × W × D), weight 32 kg.
| Series | Silk Nova Duetto FU 565-590 MV |
|---|---|
| Series power range | 565-590 Wp |
| Warranty | 15 years |
| Power warranty — point 1 (years, % output) | 20, 92 |
| Power warranty — point 2 (years, % output) | 30, 87 |
| Voltage at max. power Vmpp (STC) | 42.65 V |
| Current at max. power Impp (STC) | 13.84 A |
| Open-circuit voltage Voc (STC) | 51.28 V |
| Short-circuit current Isc (STC) | 22.84 A |
| Module efficiency (STC) | 22.84 % |
| Temperature coefficient of Pmax | -0.29 %/°C |
| Temperature coefficient of Voc | -0.25 %/°C |
| Temperature coefficient of Isc | 0.045 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 30 A |
| Number of cells | 144 |
| Glass type | solar glass with ARC |
| Glass thickness | 2 mm |
| Frame | Anodised aluminium frame with mounting and drainage holes |
| Bypass diodes | 3 |
| Junction box IP rating | IP68 |
| Cable cross-section | 4 mm² |
| Cable length | 1400 mm |
| Cell technology | Front contact |
| Module power | 590 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Silver frame |
| Module type | Bifacial |
| Height | 2278 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 32 kg |
