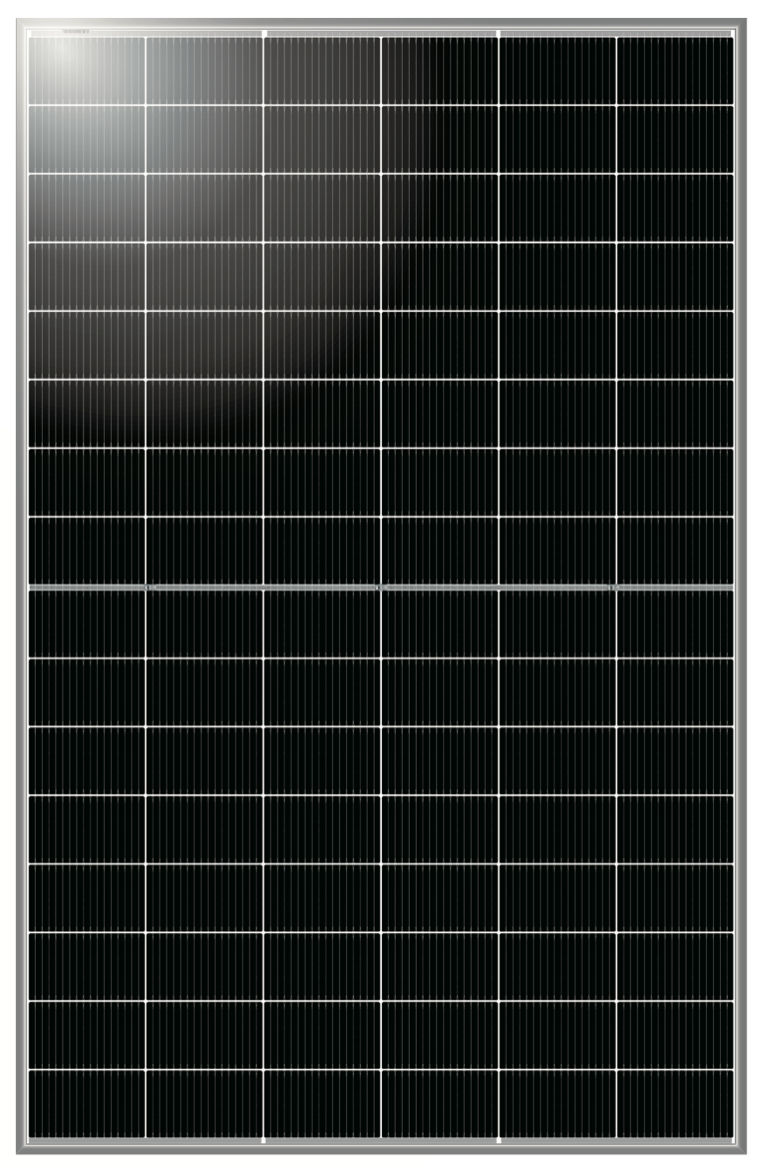

PV module Ulica Solar UL-455M-96DDGN rated 455 Wp. Cells: N-type (96 pcs), bifacial, silver frame, module efficiency 22.77% (STC). Product warranty 15 years, power warranty: 87.4% after 30 years. Dimensions 1762 × 1134 × 30 mm (H × W × D), weight 23.7 kg.
| Series | UL-430-455M-96DDGN |
|---|---|
| Series power range | 430-455 Wp |
| Warranty | 15 years |
| Power warranty — point 2 (years, % output) | 30, 87.4 |
| Voltage at max. power Vmpp (STC) | 29.75 V |
| Current at max. power Impp (STC) | 15.3 A |
| Open-circuit voltage Voc (STC) | 35.29 V |
| Short-circuit current Isc (STC) | 16.15 A |
| Module efficiency (STC) | 22.77 % |
| Temperature coefficient of Pmax | -0.29 %/°C |
| Temperature coefficient of Voc | -0.25 %/°C |
| Temperature coefficient of Isc | 0.046 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 30 A |
| Number of cells | 96 |
| Glass type | High Transmission, Low Iron, Tempered Glass |
| Glass thickness | 2 mm |
| Frame | Anodised aluminium alloy |
| Bypass diodes | 3 |
| Junction box IP rating | IP68 |
| Connector type | MC4-EVO2 |
| Cable cross-section | 4 mm² |
| Cable length | (+)400/(-)200 mm |
| Cell technology | Front contact |
| Module power | 455 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Silver frame |
| Module type | Bifacial |
| Height | 1762 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 23.7 kg |
