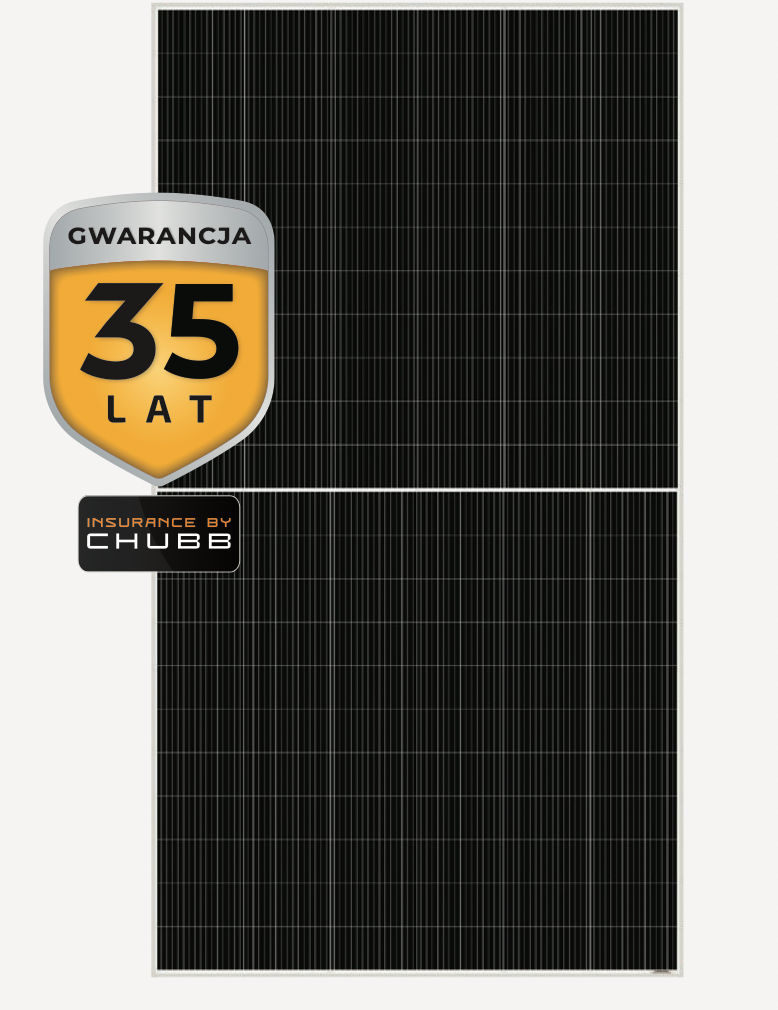

PV module SMARTSUN SSP715S9-132NT rated 715 Wp. Cells: N-type, bifacial, silver frame, module efficiency 23.02% (STC). Product warranty 35 years, power warranty: 87.4% after 30 years and 85.4% after 35 years. Dimensions 2384 × 1303 × 30 mm (H × W × D), weight 38.5 kg.
| Series | SSP695-715S9-132NT |
|---|---|
| Series power range | 695-715 Wp |
| Warranty | 35 years |
| Power warranty — point 1 (years, % output) | 30, 87.4 |
| Power warranty — point 2 (years, % output) | 35, 85.4 |
| Voltage at max. power Vmpp (STC) | 42.8 V |
| Current at max. power Impp (STC) | 16.71 A |
| Open-circuit voltage Voc (STC) | 50.8 V |
| Short-circuit current Isc (STC) | 17.55 A |
| Module efficiency (STC) | 23.02 % |
| Temperature coefficient of Pmax | -0.29 %/°C |
| Temperature coefficient of Voc | -0.25 %/°C |
| Temperature coefficient of Isc | 0.045 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 35 A |
| Number of cells | 132 |
| Glass type | Double glass; tempered with AR Coating |
| Glass thickness | 2 mm |
| Frame | Anti-Reflection Coating |
| Bypass diodes | 3 |
| Junction box IP rating | IP68 |
| Connector type | MC4 |
| Cable cross-section | 4 mm² |
| Cable length | 2x1400 mm |
| Cell technology | Front contact |
| Module power | 715 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Silver frame |
| Module type | Bifacial |
| Height | 2384 mm |
|---|---|
| Width | 1303 mm |
| Depth | 30 mm |
| Weight | 38.5 kg |
