from 2,282.29 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

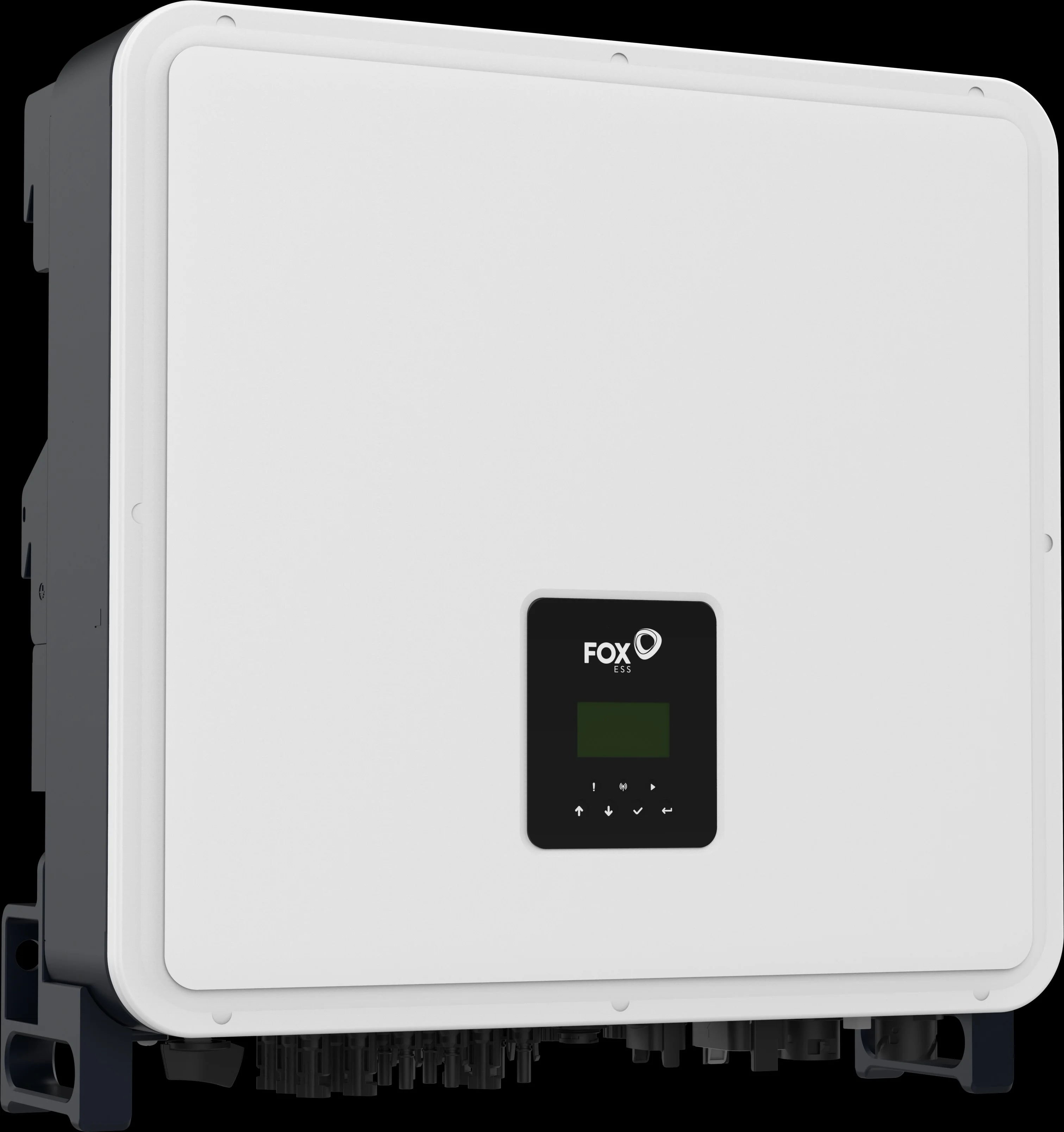

Hybrid inverter FoxESS H3-PRO-25.0 rated 25 kW, three-phase, 3 MPPT. Max. DC voltage 1000 V, maximum efficiency 97.8%, European efficiency 97.3%. IP rating IP65, operating temperature −25 to 60 °C. Dimensions 560 × 600 × 225 mm (H × W × D), weight 52.5 kg.
| Series | H3 Pro |
|---|---|
| Series AC power range | 15-30 kW |
| Max. DC power | 37.5 kW |
| Max. DC voltage | 1000 V |
| Max. DC current | 32 A |
| DC inputs | 2 |
| Max. AC power | 27.5 kW |
| Nominal AC voltage | 220/380; 230/400 V |
| Max. AC current | 41.7 A |
| Frequency | 50/60 Hz |
| Power factor | 1 (adjustable 0.8 leading to 0.8 lagging) |
| Maximum efficiency | 97.8 % |
| European efficiency | 97.3 % |
| Operating temperature range | -25 ~ +60 °C |
| IP rating | IP65 |
| Display | LCD |
| Protection features | Internal Overvoltage Protection DC Insulation Rsistance Detection Grid Monitoring GFCI Monitoring DCI Monitoring AC Short Circuit Current Protection AC Grounding Detection DC Surge Protection AC Surge Protection Anti-islanding Protection AFCI Protection |
| Inverter type | Hybrid |
|---|---|
| Number of MPPT | 3 |
| Inverter power | 25 kW |
| Number of phases | 3 |
| Height | 560 mm |
|---|---|
| Width | 600 mm |
| Depth | 225 mm |
| Weight | 52.5 kg |
