from 420.20 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

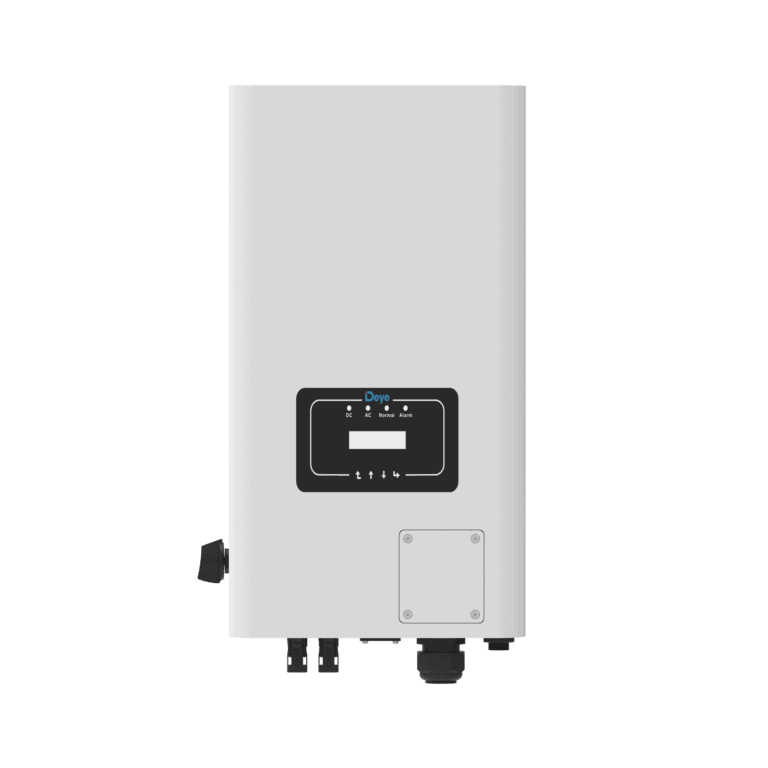

On-grid inverter Deye SUN-8K-G06P3-EU-BM2-P1 rated 8 kW, three-phase, 2 MPPT. Max. DC voltage 1100 V, maximum efficiency 98.3%, European efficiency 97.8%. IP rating IP65, operating temperature −25 to 60 °C. Dimensions 525 × 283 × 178 mm (H × W × D), weight 11.5 kg.
| Series | SUN-3-15K-G06P3-EU-BM2-P1 |
|---|---|
| Series AC power range | 3-15 kW |
| Max. DC power | 12 kW |
| Max. DC voltage | 1100 V |
| Max. DC current | 20+20 A |
| Strings per MPPT | 1 |
| Max. AC power | 8.8 kW |
| AC output voltage range | 220/380, 230/400 V |
| Max. AC current | 13.4/12.8 A |
| Nominal AC current | 12.2/11.6 A |
| Frequency range | 45-55 / 55-65 Hz |
| Frequency | 50/60 Hz |
| Maximum efficiency | 98.3 % |
| European efficiency | 97.8 % |
| Operating temperature range | -25 ~ +60 °C |
| IP rating | IP65 |
| Protection features | DC Reverse Polarity Protection AC Output Overcurrent Protection AC Output Overvoltage Protection AC Output Short Circuit Protection Thermal Protection Insulation Impedance Detection DC Component Monitoring Arc Fault Circuit Interrupter (AFCI) Anti-islanding Protection Residual Current Detection Surge Protection Level DC Switch |
| Inverter type | On-grid |
|---|---|
| Number of MPPT | 2 |
| Inverter power | 8 kW |
| Number of phases | 3 |
| Height | 525 mm |
|---|---|
| Width | 283 mm |
| Depth | 178 mm |
| Weight | 11.5 kg |
