from 734.82 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

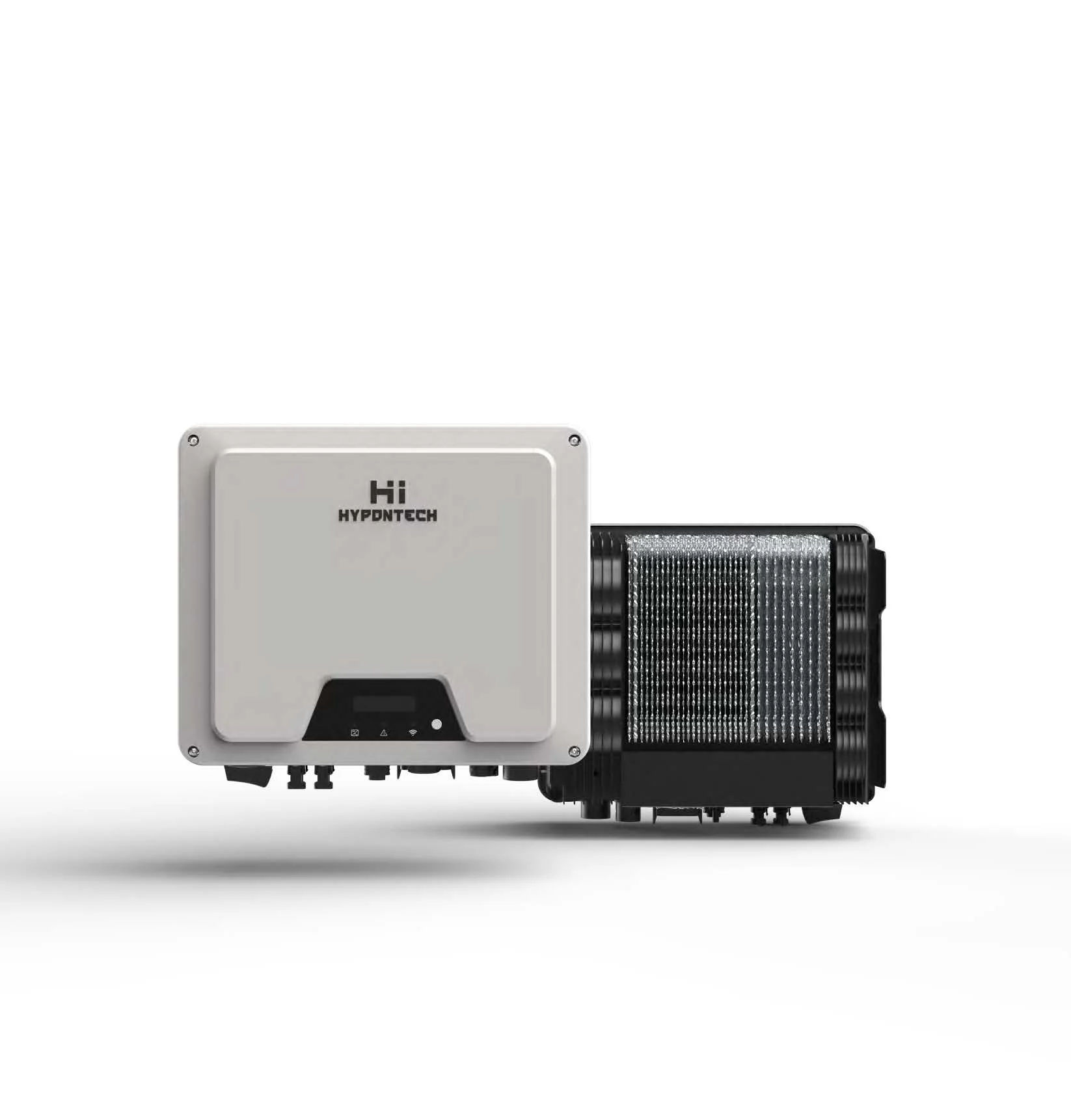

Hybrid inverter Hypontech HHT-10000 rated 10 kW, three-phase, 2 MPPT. Max. DC voltage 1000 V, maximum efficiency 98.2%, European efficiency 97.4%. IP rating IP65, operating temperature −25 to 60 °C. Dimensions 351 × 425 × 200 mm (H × W × D), weight 22 kg, warranty 5 years.
| Series | HHT 5-12K |
|---|---|
| Product warranty | 5 years |
| Series AC power range | 5-12 kW |
| Max. DC power | 15 kW |
| Max. DC voltage | 1000 V |
| Max. DC current | 16/16 A |
| Strings per MPPT | 1 |
| DC inputs | 2 |
| Connectors | MC4 |
| Max. AC power | 10 kW |
| Nominal AC voltage | 380/400 V |
| Frequency | 50/60 Hz |
| Power factor | 0.8ind to 0.8cap |
| Maximum efficiency | 98.2 % |
| European efficiency | 97.4 % |
| Operating temperature range | -25 ~ 60 °C |
| IP rating | IP65 |
| Display | LED&LCD |
| Protection features | Anti-Islanding Protection. Input Reverse Polarity Protection. Insulation Resistance Detection. Residual Current Monitoring. Output Over Current Protection. Output Short Circut Protection. Over Voltage Protection. Surge Protection. Battery Reverse Polarity Protection. |
| Inverter type | Hybrid |
|---|---|
| Number of MPPT | 2 |
| Inverter power | 10 kW |
| Number of phases | 3 |
| Height | 351 mm |
|---|---|
| Width | 425 mm |
| Depth | 200 mm |
| Weight | 22 kg |
