from 528.00 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

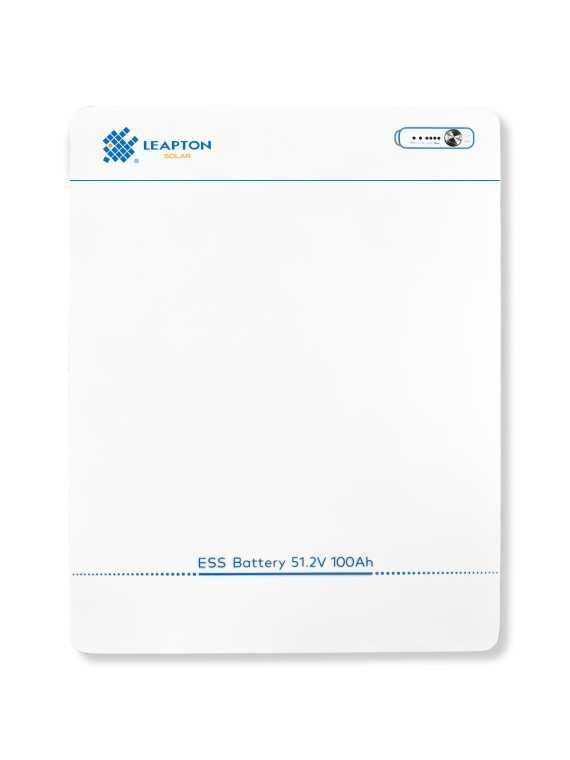

Battery module Leapton EL-A05 with 5.12 kWh capacity, LiFePO4 (LFP), low voltage (LV), voltage 51.2 V. Operating voltage 40–57.6 V, depth of discharge 90%, IP rating IP65. Application: residential. Dimensions 585 × 135 × 454 mm (H × W × D), weight 45 kg, warranty 10 years.
| Series | Low Voltage Battery EL-A05 |
|---|---|
| Warranty | 10 years |
| System type (HV / LV) | Low voltage (LV) |
| Min. voltage | 40 V |
| Max. voltage | 57.6 V |
| Depth of discharge (DoD) | 90 % |
| IP rating | IP65 |
| Max. charge / discharge temperature | 0/-20 °C |
| Min. charge / discharge temperature | 50/50 °C |
| Capacity | 5.12 kWh |
|---|---|
| Battery voltage | 51.2 V |
| Cell technology | LiFePO4 (LFP) |
| Application | Residential |
| Height | 585 mm |
|---|---|
| Width | 135 mm |
| Length | 454 mm |
| Weight | 45 kg |
