from 3,426.83 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

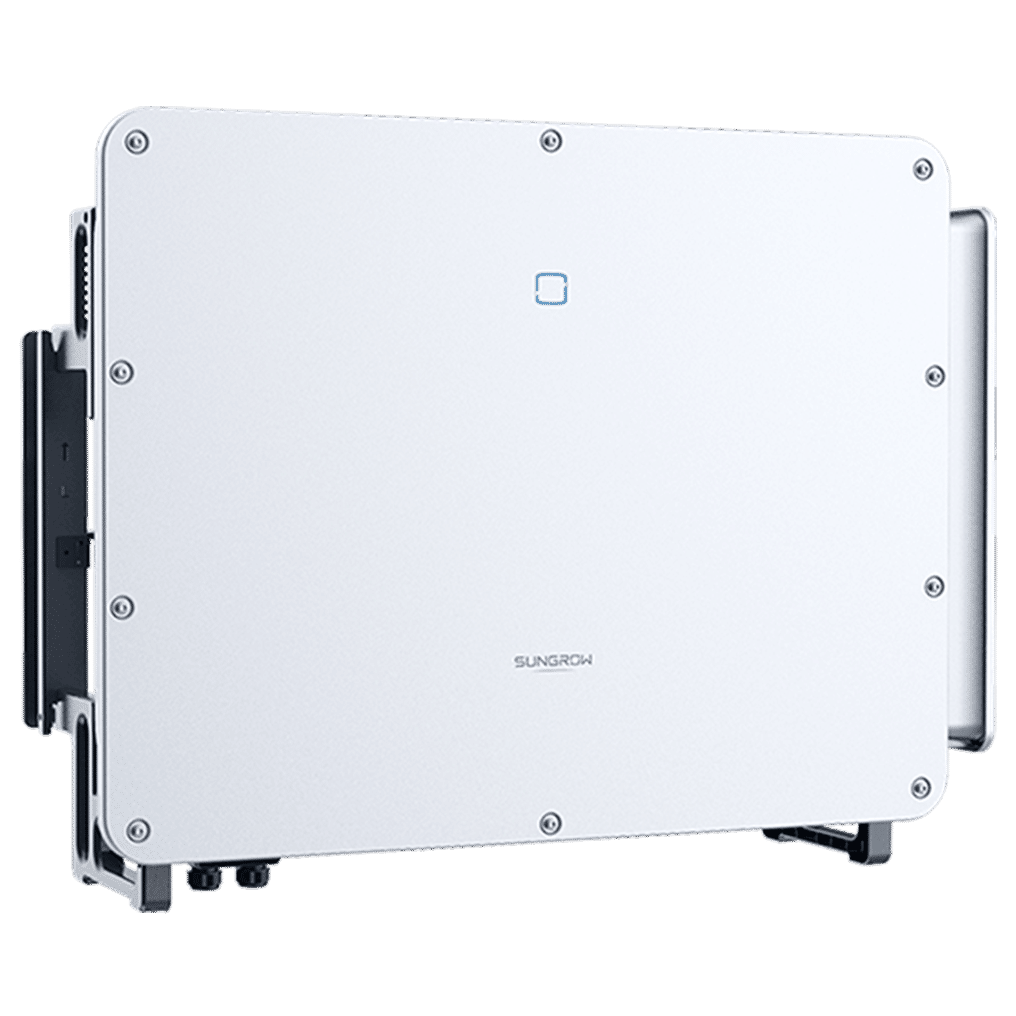

On-grid inverter Sungrow SG125CX-P3 rated 125 kW, three-phase, 10 MPPT. Max. DC voltage 1100 V, maximum efficiency 98.5%, European efficiency 98.3%. IP rating IP66, operating temperature −30 to 60 °C. Dimensions 795 × 1025 × 360 mm (H × W × D), weight 88 kg.
| Series | SG125CX-P3 |
|---|---|
| Series AC power range | 125 kW |
| Max. DC power | 198 kW |
| Max. DC voltage | 1100 V |
| Max. DC current | 400 A |
| Strings per MPPT | 2 |
| Connectors | MC4 |
| Max. AC power | 125 kW |
| AC output voltage range | 320-480 V |
| Nominal AC voltage | 220/380; 230/400 V |
| Max. AC current | 189.9 A |
| Nominal AC current | 181.1 A |
| Frequency range | 45-55 / 55-65 Hz |
| Frequency | 50/60 Hz |
| Power factor | > 0.99 / 0.8 leading – 0.8 lagg |
| Maximum efficiency | 98.5 % |
| European efficiency | 98.3 % |
| Operating temperature range | -30 ~ 60 °C |
| IP rating | IP66 |
| Display | LED, Bluetooth + APP |
| Protection features | Grid monitoring DC reverse polarity protection AC short-circuit protection Leakage current protection Surge protection Ground fault monitoring DC switch PV string current monitoring Arc fault circuit interrupter (AFCI) PID recovery functio |
| Inverter type | On-grid |
|---|---|
| Number of MPPT | 10 |
| Inverter power | 125 kW |
| Number of phases | 3 |
| Height | 795 mm |
|---|---|
| Width | 1025 mm |
| Depth | 360 mm |
| Weight | 88 kg |
