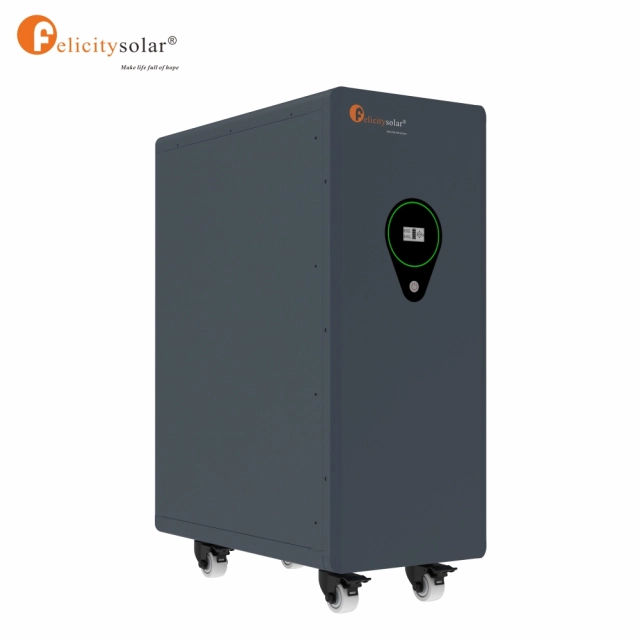

Felicity 25 kWh FLA48500

Capacity: 25.0 kWh
Availability: On order
Minimum order: 1 pcs

Downloads

PDF Datasheet — fla20series20512v2025kwh 2.3 MB

Price on request

We will check availability and get back to you with this information.

Nothing to pay now.

Description

Battery module Felicity FLA48500 with 25 kWh capacity, LiFePO4 (LFP), low voltage (LV), voltage 51.2 V. Operating voltage 44.8–57.6 V, depth of discharge 95%, communication CAN,RS485, IP rating IP21. Dimensions 990 × 380 × 718 mm (H × W × D), weight 218.1 kg, warranty 7 years.

Manufacturer information

Long Warranty: 7 Years. High Scalability: Capacity up to 375kWh. Flexible Installation: Movable type Floor-Mounted. Multiple Protection: Built-in smart BMS Breaker and Fuse. Wide Compatibility:Compatible withleading inverter brands. LiFePO: Higher safe performance and longercycle life.

Technical data

Product details

Series	FLA Series 51.2V 25kWh
Warranty	7 years
System type (HV / LV)	Low voltage (LV)
Min. voltage	44.8 V
Max. voltage	57.6 V
Depth of discharge (DoD)	95 %
IP rating	IP21
Max. charge / discharge temperature	55/55 °C
Min. charge / discharge temperature	0/-20 °C
Communication protocol	CAN,RS485
