from 385.00 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

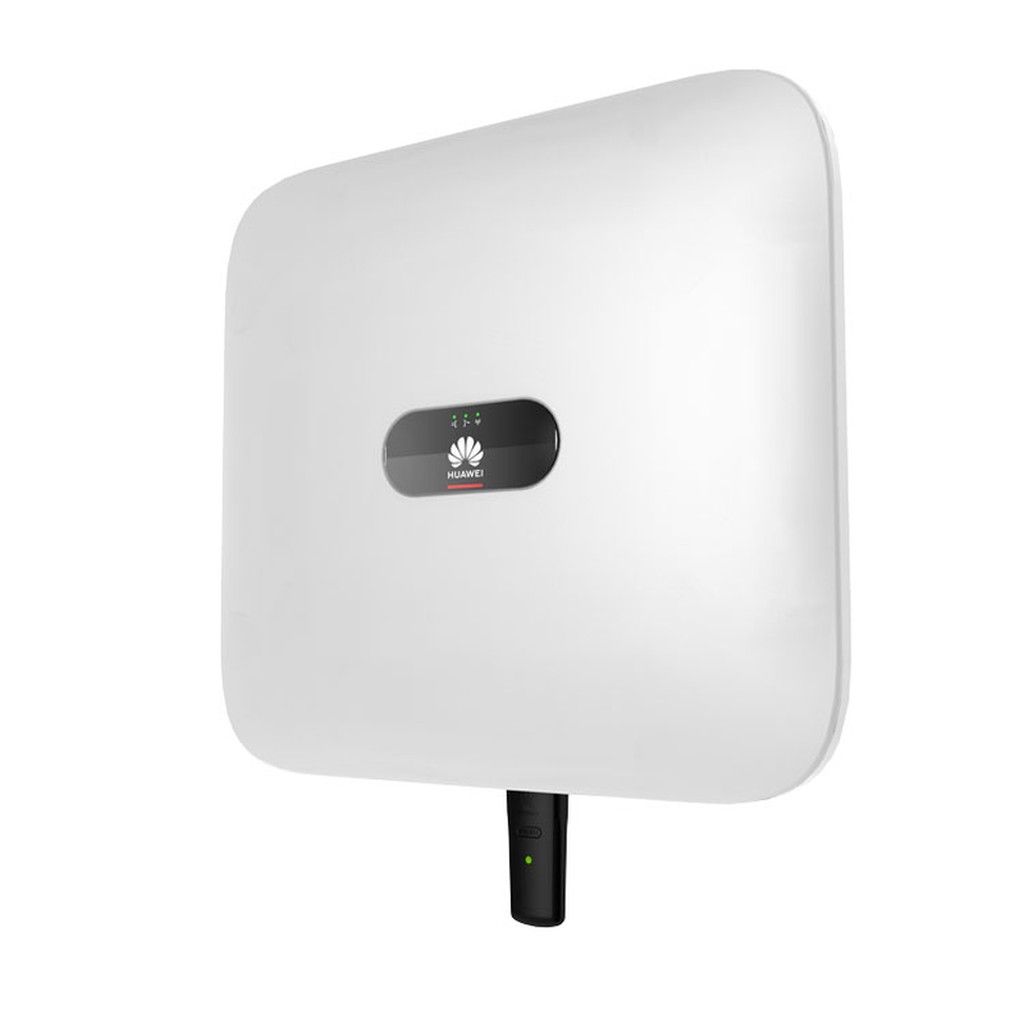

Hybrid inverter Huawei SUN2000-3KTL-M1-HC rated 3 kW, three-phase, 2 MPPT. Max. DC voltage 1100 V, maximum efficiency 98.2%, European efficiency 96.7%. IP rating IP65, operating temperature −25 to 60 °C, cooling: natural convection. Dimensions 525 × 470 × 146.5 mm (H × W × D), weight 17 kg, warranty 10 years.
| Series | SUN2000-3/4/5/6/8/10KTL-M1 (High Current Version) |
|---|---|
| Product warranty | 10 years |
| Series AC power range | 3-10 kW |
| Max. DC power | 4.5 kW |
| Max. DC voltage | 1100 V |
| Max. DC current | 13.5 A |
| Strings per MPPT | 1 |
| DC inputs | 2 |
| Max. AC power | 3.3 kW |
| Nominal AC voltage | 220/380; 230/400 V |
| Max. AC current | 5.1 A |
| Frequency | 50/60 Hz |
| Power factor | 0.8 leading to 0.8 lagging |
| Maximum efficiency | 98.2 % |
| European efficiency | 96.7 % |
| Operating temperature range | -25 ~ +60 °C |
| IP rating | IP65 |
| Relative humidity | 0-100 % |
| Cooling | Natural convection |
| Max. altitude | 4000 m |
| Interfaces | RS 485, Ethernet, WLAN |
| Display | LED |
| Protection features | Internal Overvoltage Protection DC Insulation Rsistance Detection Grid Monitoring GFCI Monitoring DCI Monitoring AC Short Circuit Current Protection AC Grounding Detection DC Surge Protection AC Surge Protection Anti-islanding Protection AFCI Protection |
| Inverter type | Hybrid |
|---|---|
| Number of MPPT | 2 |
| Inverter power | 3 kW |
| Number of phases | 3 |
| Height | 525 mm |
|---|---|
| Width | 470 mm |
| Depth | 146.5 mm |
| Weight | 17 kg |
