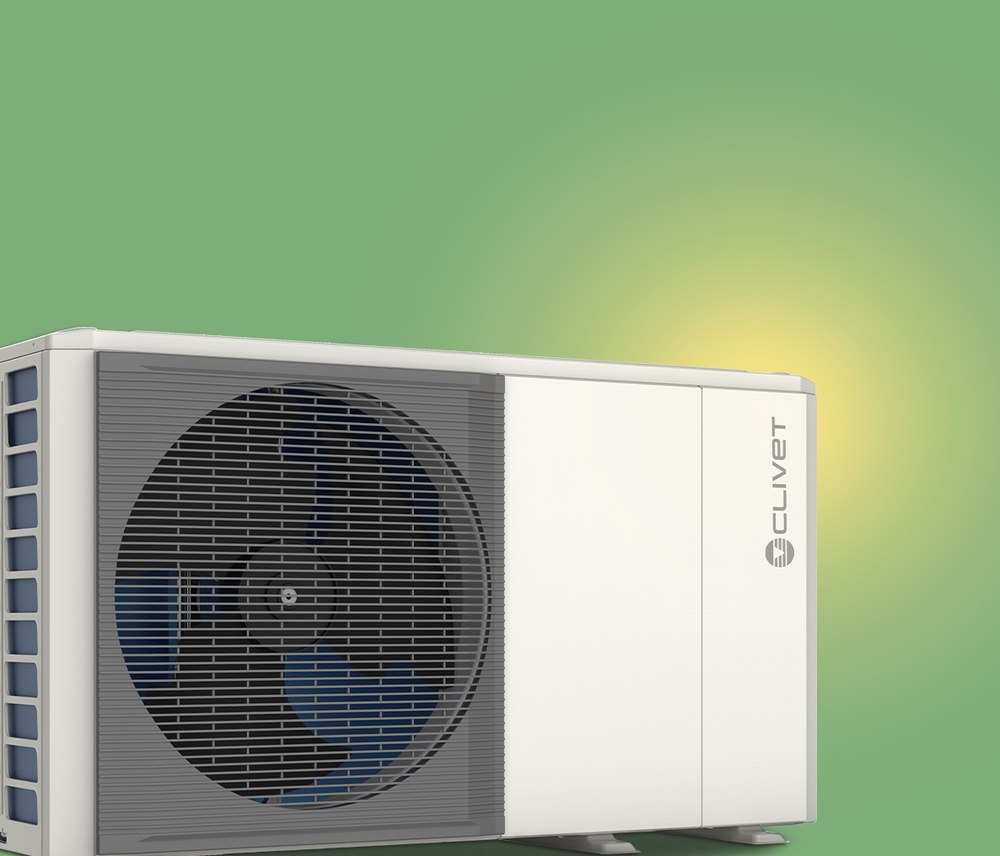

Clivet 15.9 kW WiSAN-YME 1 S 8.1T

Power: 15.9 kW
Availability: On order
Minimum order: 1 pcs

Downloads

PDF Manufacturer datasheet 0.6 MB

Price on request

We will check availability and get back to you with this information.

Nothing to pay now.

Description

Air-to-water heat pump Clivet WiSAN-YME 1 S 8.1T with 15.2 kW heating capacity, refrigerant R32. SCOP 4.53 (W35), COP 4.5 (A7/W35), energy class A+++, seasonal space heating efficiency ηs 182% (W35). Power supply three-phase, min. outdoor operating temperature −25 °C, SG Ready. Outdoor unit sound power level 68 dB(A).

Technical data

Product details

AC input voltage	380-415 V
COP (A-7/W35)	2.67
COP (A2/W35 or B0/W35)	3.63
COP (A7/W35)	4.5
Frequency	50 Hz
Functions	Heating, cooling, DHW
Max. power input	6.2 kW
Min. outdoor operating temperature	-25 °C
Number of compressors	1
Number of phases	3
Rated power input (heating)	3.53 kW
Refrigerant charge	1.75 kg
Refrigerant GWP	675
Seasonal space heating efficiency ηs (W55)	133 %

Main parameters

Grid readiness (SG Ready)	SG Ready
Heat pump type	Air-to-water
Heating capacity	15.2 kW
Refrigerant	R32
SCOP (average climate, W35)	4.53
Seasonal energy class (W35)	A+++
Seasonal space heating efficiency ηs (W35)	182 %
