from 3,270.19 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

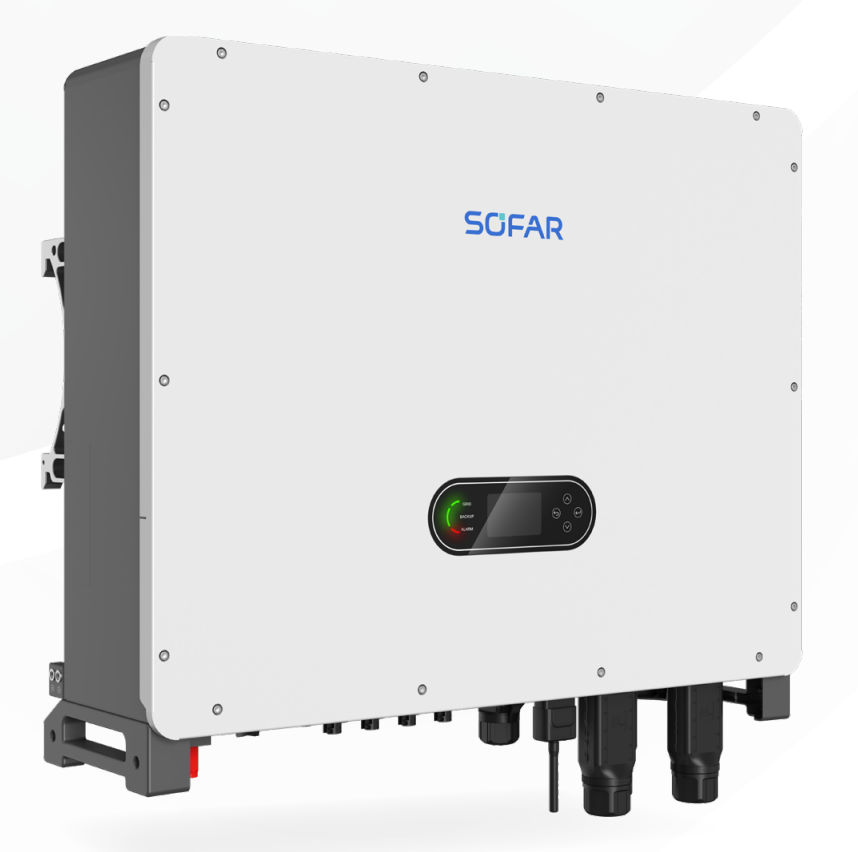

Hybrid inverter Sofar HYD-40K-T1 rated 40 kW, three-phase, 4 MPPT. Max. DC voltage 1000 V, maximum efficiency 98.2%, European efficiency 97.5%. IP rating IP66, operating temperature 30 to 60 °C. Dimensions 660 × 850 × 305 mm (H × W × D), weight 75 kg.
| Series | HYD-40-60K-T1 |
|---|---|
| Series AC power range | 40-60 kW |
| Max. DC power | 80 kW |
| Max. DC voltage | 1000 V |
| Max. DC current | 40/40/40/40 A |
| Strings per MPPT | 2/2/2/2 |
| Max. AC power | 40 kW |
| Nominal AC current | 60.8/57.7/55.6 A |
| Frequency | 50/60 Hz |
| Power factor | 0.8 leading to 0.8 lagging |
| Maximum efficiency | 98.2 % |
| European efficiency | 97.5 % |
| Operating temperature range | 30 ~ +60 °C |
| IP rating | IP66 |
| Display | LCD & APP |
| Protection features | DC Switch PV Reverse Connection Protection Battery Reverse Connection Protection Output Short Circuit Protection Output Overcurrent Protection Output Overvoltage Protection Insulation Impedance Detection Residual Current Detection Anti-island Protection Surge Protection[6] |
| Inverter type | Hybrid |
|---|---|
| Number of MPPT | 4 |
| Inverter power | 40 kW |
| Number of phases | 3 |
| Height | 660 mm |
|---|---|
| Width | 850 mm |
| Depth | 305 mm |
| Weight | 75 kg |
