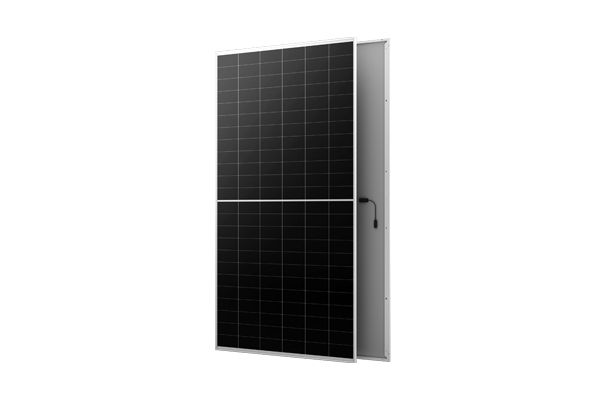

PV module Aiko AIKO-A605-MAH72Mw rated 605 Wp. Cells: N-type (144 pcs), monofacial, silver frame, module efficiency 23.4% (STC). Product warranty 15 years, power warranty: 90.6% after 25 years and 88.85% after 30 years. Dimensions 2278 × 1134 × 30 mm (H × W × D), weight 27 kg.
| Series | AIKO-A585-610-MAH72Mw Comet 1N |
|---|---|
| Series power range | 585-610 Wp |
| Warranty | 15 years |
| Power warranty — point 1 (years, % output) | 25, 90.6 |
| Power warranty — point 2 (years, % output) | 30, 88.85 |
| Voltage at max. power Vmpp (STC) | 44.78 V |
| Current at max. power Impp (STC) | 13.52 A |
| Open-circuit voltage Voc (STC) | 54.04 V |
| Short-circuit current Isc (STC) | 14.28 A |
| Module efficiency (STC) | 23.4 % |
| Temperature coefficient of Pmax | -0.26 %/°C |
| Temperature coefficient of Voc | -0.22 %/°C |
| Temperature coefficient of Isc | 0.05 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 25 A |
| Number of cells | 144 |
| Glass type | Tempered glass |
| Glass thickness | 3.2 mm |
| Frame | Anodised aluminium alloy |
| Bypass diodes | 3 |
| Junction box IP rating | IP68 |
| Connector type | MC4-Evo2 |
| Cable cross-section | 4 mm² |
| Cable length | ±350mm/±1400mm or Customized Length |
| Cell technology | Back contact |
| Module power | 605 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Silver frame |
| Module type | Monofacial |
| Height | 2278 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 27 kg |
