from 2,180.76 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

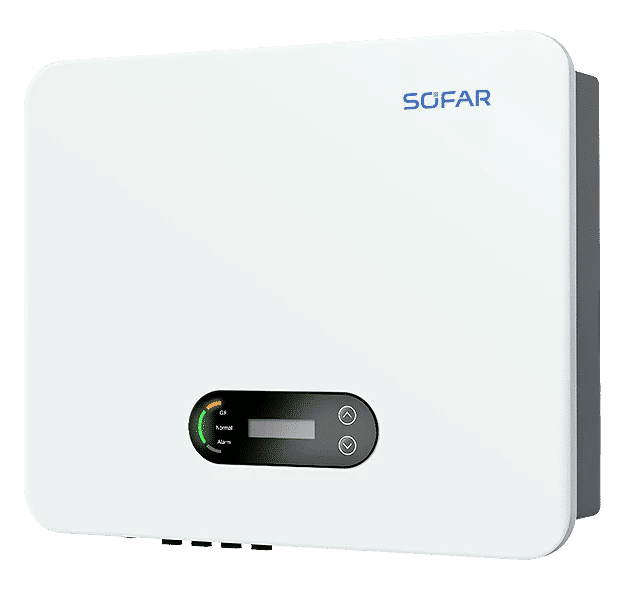

On-grid inverter Sofar 60KTLX-G3 rated 60 kW, three-phase, 6 MPPT. Max. DC voltage 1100 V, maximum efficiency 98.7%, European efficiency 98.2%. IP rating IP66, operating temperature −30 to 60 °C. Dimensions 561 × 687 × 275 mm (H × W × D), weight 50 kg, warranty 12 years.
| Series | SOFAR 60K-80KTLX-G3 |
|---|---|
| Product warranty | 12 years |
| Series AC power range | 60-80 kW |
| Max. DC voltage | 1100 V |
| Max. DC current | 6x40 A |
| Strings per MPPT | 2 |
| DC inputs | 12 |
| Max. AC power | 60 kW |
| AC output voltage range | 310-480 V |
| Nominal AC voltage | 230/400 V |
| Max. AC current | 100 A |
| Frequency range | 45-55 / 55-65 Hz |
| Frequency | 50/60 Hz |
| Power factor | 1 (adjustable 0.8 leading to 0.8 lagging) |
| Maximum efficiency | 98.7 % |
| European efficiency | 98.2 % |
| Operating temperature range | -30 ~ +60 °C |
| IP rating | IP66 |
| Display | LCD & Bluetooth +APP |
| Protection features | DC reverse polarity protection Anti-islanding protection Leakage current protection Ground fault monitoring PV-array string fault monitoring DC switch SPD |
| Inverter type | On-grid |
|---|---|
| Number of MPPT | 6 |
| Inverter power | 60 kW |
| Number of phases | 3 |
| Height | 561 mm |
|---|---|
| Width | 687 mm |
| Depth | 275 mm |
| Weight | 50 kg |
