from 3,520.00 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

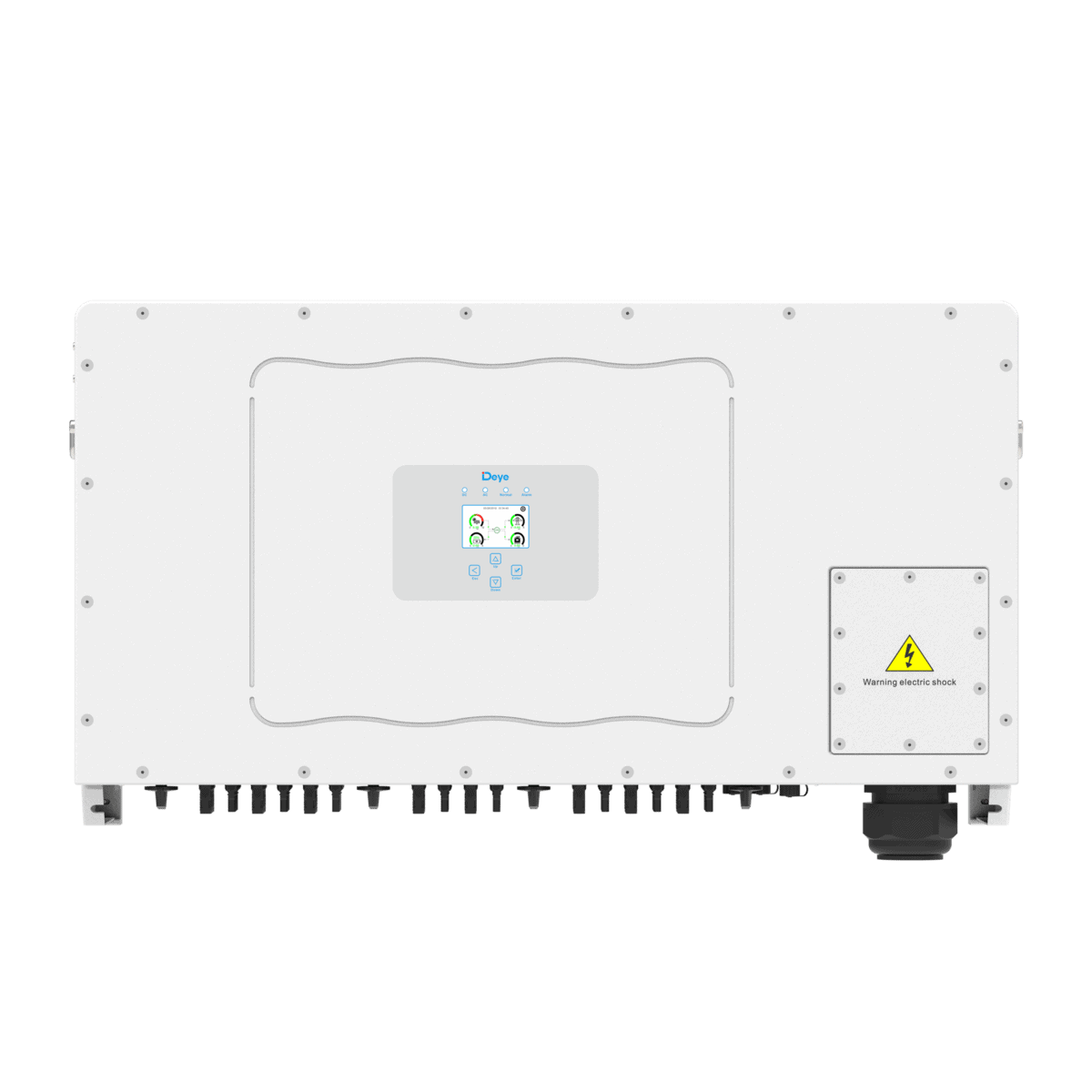

On-grid inverter Deye SUN-125K-G01P3 -EU-AM8 rated 125 kW, three-phase, 8 MPPT. Max. DC voltage 1100 V, maximum efficiency 98.8%, European efficiency 98.3%. IP rating IP65. Dimensions 516 × 1006 × 325.5 mm (H × W × D), weight 103 kg.
| Series | SUN-120/125/130/135/136K-G01P3-EU-AM8 |
|---|---|
| Product warranty | Designed Lifetime >20 years |
| Series AC power range | 120-136 kW |
| Max. DC power | 187.5 kW |
| Max. DC voltage | 1100 V |
| Max. DC current | 40+40+40+40+40+40+40+40 A |
| Strings per MPPT | 4 |
| Max. AC power | 135 kW |
| Nominal AC voltage | 220/380; 230/400 V |
| Max. AC current | 204.6/195.7 A |
| Nominal AC current | 189.4/181.2 A |
| Frequency range | 45-55 or 55-65 Hz |
| Frequency | 50 / 60 Hz |
| Power factor | >0.99 |
| Maximum efficiency | 98.8 % |
| European efficiency | 98.3 % |
| Operating temperature range | -25-60, >45 Derating °C |
| IP rating | IP65 |
| Display | LCD 240 × 160 |
| Protection features | DC Reverse-Polarity Protection, AC Short Circuit Protection, AC Output Overcurrent Protection, Output Overvoltage Protection, Insulation Resistance Protection, Ground Fault Monitoring, Anti-islanding Protection, Temperature Protection, Integrated DC Switch, Remote Software Upload, Remote Change of Operating Parameters, Surge Protection DC Type II / AC Type II |
| Inverter type | On-grid |
|---|---|
| Number of MPPT | 8 |
| Inverter power | 125 kW |
| Number of phases | 3 |
| Height | 516 mm |
|---|---|
| Width | 1006 mm |
| Depth | 325.5 mm |
| Weight | 103 kg |
