from 51.20 € 0.128 €/Wp
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

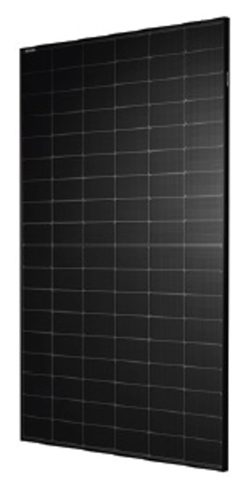

PV module AEG AS-M3407U-S(M6)-400/HV FB rated 400 Wp. Cells: P-type, monofacial, Full black, module efficiency 20.4% (STC). Product warranty 15 years, power warranty: 84.8% after 25 years. Dimensions 1719 × 1140 × 30 mm (H × W × D), weight 21 kg.
| Series | AS-M3407U-S(M6) |
|---|---|
| Series power range | 400-410 Wp |
| Warranty | 15 years |
| Power warranty — point 1 (years, % output) | 25, 84.8 |
| Voltage at max. power Vmpp (STC) | 38.6 V |
| Current at max. power Impp (STC) | 10.36 A |
| Open-circuit voltage Voc (STC) | 46.4 V |
| Short-circuit current Isc (STC) | 10.97 A |
| Module efficiency (STC) | 20.4 % |
| Temperature coefficient of Pmax | -0.34 %/°C |
| Temperature coefficient of Voc | -0.27 %/°C |
| Temperature coefficient of Isc | 0.04 %/°C |
| Max. system voltage | 1500 V |
| Number of cells | 340 |
| Glass type | Front: high-transparency |
| Glass thickness | 2 mm |
| Frame | Anodised aluminium alloy |
| Connector type | MC4 |
| Cable cross-section | 4 mm² |
| Cable length | 1400 mm |
| Cell technology | Front contact |
| Module power | 400 Wp |
|---|---|
| Cell type | P-type |
| Frame colour | Full black |
| Module type | Monofacial |
| Height | 1719 mm |
|---|---|
| Width | 1140 mm |
| Depth | 30 mm |
| Weight | 21 kg |
