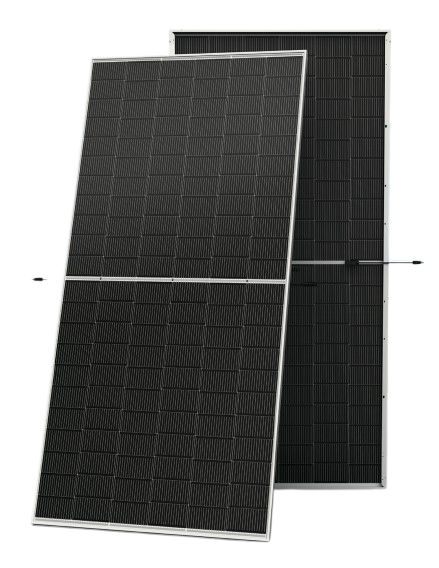

Trina 615W TSM-NEG19RC.20 Silver Frame

Power: 615 Wp
Availability: In stock
: Number of offers: 2
Minimum order: 1 pcs
Pieces per pallet: 36 pcs
Pieces per container: 720 pcs

Downloads

PDF Manufacturer datasheet 1.1 MB

Net price by quantity

from 80.57 € 0.131 €/Wp

Quantity-tier prices are visible to registered companies.

No payment now. Transport is quoted after you place the order and needs your approval.

Description

PV module Trina TSM-NEG19RC.20 rated 615 Wp. Cells: N-type (132 pcs), bifacial, silver frame, module efficiency 22.8% (STC). Product warranty 12 years, power warranty: 87.4% after 30 years. Dimensions 2382 × 1134 × 30 mm (H × W × D), weight 33 kg.

Manufacturer information

High customer value - Best partner of 1P tracker, with highest utilization of tracker length - Low voltage design with higher string power, effectively reducing BOS (Balance of System) and LCOE (Levelized Cost of Energy) by 1%~5% - Standardized module size with higher container space utilization effectively reduces the freight cost - Excellent compatibility with existing mainstream system components - Certified Low-Carbon Footprint High power up to 630W - Up to 23.3% module efficiency , on 210 innovation platform - Patented i-TOPCon technology with continuous efficiency upgrade, including contact resistance reduction, rear reflection enhancement and edge quality repairment High reliability - Minimized micro-cracks with innovative non-destructive cutting technology and high-density packaging - Reduced risks of hot-spot with half-cut technology - Certified high resistance against salt, ammonia, sand, PID, LID, LeTID - Sustainable in harsh environments and extreme weather conditions High energy yield - Excellent low irradiation performance, validated by 3rd party - Lower temperature coefficient (-0.29%/°C) - Higher bifaciality, with up to 10%~20% additional power gain from back side depending on albedo - Reliable dual-glass structure with 30-year power guarantee

Technical data

Product details

Series	TSM-NEG19RC.20 605-630W
Series power range	605-630 Wp
Warranty	12 years
Power warranty — point 1 (years, % output)	30, 87.4
Voltage at max. power Vmpp (STC)	41.1 V
Current at max. power Impp (STC)	14.98 A
Open-circuit voltage Voc (STC)	49.3 V
Short-circuit current Isc (STC)	15.89 A
Module efficiency (STC)	22.8 %
Temperature coefficient of Pmax	-0.29 %/°C
Temperature coefficient of Voc	-0.24 %/°C
Temperature coefficient of Isc	0.04 %/°C
Max. system voltage	1500 V
Max. series fuse rating	35 A
Number of cells	132
Glass type	Heat-strengthened glass with anti-reflective coating
Glass thickness	2 mm
Frame	Anodised aluminium alloy
Bypass diodes	2
Junction box IP rating	IP68
Connector type	MC4 EVO2
Cable cross-section	4 mm²
Cable length	350/280 mm Length can be customized
Cell technology	Front contact
