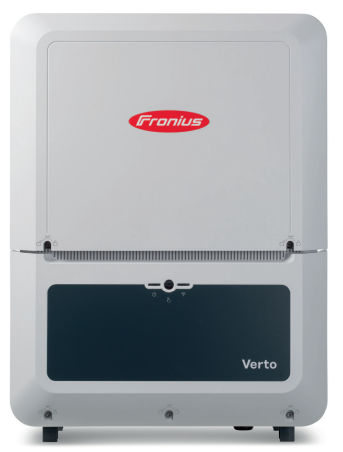

Fronius 20 kW Verto 20.0

Power: 20 kW
Phases: 3‑phase
Availability: In stock
: Number of offers: 6
Minimum order: 1 pcs
Incoterms: CIF, EXW, FCA

Downloads

PDF Datasheet — verto 2.3 MB

Net price by quantity

from 2,395.80 €

Quantity-tier prices are visible to registered companies.

No payment now. Transport is quoted after you place the order and needs your approval.

Description

On-grid inverter Fronius Verto 20.0 rated 20 kW, three-phase, 3 MPPT. Max. DC voltage 1000 V, maximum efficiency 98.56%, European efficiency 98.33%. Dimensions 730 × 540 × 278 mm (H × W × D), weight 35.2 kg.

Manufacturer information

01 Total flexibility The Fronius Verto offers maximum flexibility with up to four high-current MPP trackers and a wide voltage range. This makes the inverter ideally suited to complex system designs and all your individual requirements. What’s more, the Fronius Verto uses an integrated Dynamic Peak Manager algorithm that enables users to achieve optimal yields even in shady conditions. 02 Maximum safety With an integrated surge protection device and an Arc Fault Circuit Interrupter (Fronius Arc Guard), the Fronius Verto guarantees the very highest safety standards even in its basic configuration, without the need to pay for additional components. With Fronius, you can also rest assured that your data is in the best hands. This is ensured by our certified information security system and our servers and cloud storage in Europe. 03 Optimal use Use excess solar energy for other PV applications such as e-mobility or heat, save costs, and ensure faster amortization for your system. Thanks to its open interfaces, the Fronius Verto enables easy integration of consumption regulators, such as the Fronius Ohmpilot or Fronius Wattpilot Flex. A perfect addition to your PV system: Our Fronius EMIL software solution supplies your e-fleet with electricity in a fully automated process across all locations. Heat pumps or smarthome systems are easy to integrate and work well with the Fronius Verto.

Technical data

Product details

Series	Verto
Product warranty	15-33.3 years
Series AC power range	15-33.3 kW
Max. DC power	30 kW
Max. DC voltage	1000 V
Max. DC current	100 A
Strings per MPPT	2/1/1
DC inputs	4
Connectors	MC4
Max. AC power	20 kW
AC output voltage range	380-480 V
Nominal AC voltage	400 V
Frequency range	45-65 Hz
Frequency	50/60 Hz
Maximum efficiency	98.56 %
European efficiency	98.33 %
Protection features	DC/AC SPD, RCMU, Arc Fault, WSD, Polarity Reversal
