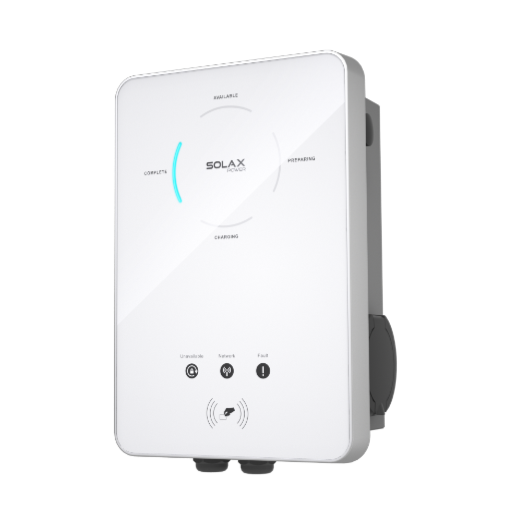

SolaX 7.2 kW X1-EVC-7.2K

SolaX 7.2 kW X1-EVC-7.2K

Power
7.2 kW
Phases
1‑phase
Availability
In stock
Number of offers: 3
Minimum order
1 pcs
Incoterms
CIF, EXW, FCA

Net price by quantity

from 448.80 €

Quantity-tier prices are visible to registered companies.

No payment now. Transport is quoted after you place the order and needs your approval.

Description

AC charger SolaX X1-EVC-7.2K rated 7.2 kW, single-phase, plug or socket. Nominal voltage 230; 1/N/PE, nominal current 32 A. Dimensions 370 × 249 × 155 mm (H × W × D), weight 7 kg.

Manufacturer information

Advantages: Plug or socket outlet selectable Integrated current failure monitoring (30mA AC & 6mA DC) Integrated with PEN protection and no earth rodR Encrypted communication based on TLS Indoor and outdoor easy installation Form an intelligent photovoltaic, storage and EV charging energy system through the communication between the smart EV charger and SolaX inverter. Capable with 100% green energy generated from your solar or wind generation. Integrated RFID function Remote setting and monitoring with APP and website Smart dynamic load balance control Set timers to reduce your cost during peak and valley price

Technical data

Product details

SeriesSmart EV Charger
Nominal voltage230; 1/N/PE V
Nominal current (configurable)32 A

Main parameters

Charger type (AC / DC)AC
Max. charging power7.2 kW
Number of phases1
Vehicle connection (cable / socket)Plug or socket

Dimensions and weight

Height370 mm
Width249 mm
Length155 mm
Weight7 kg
