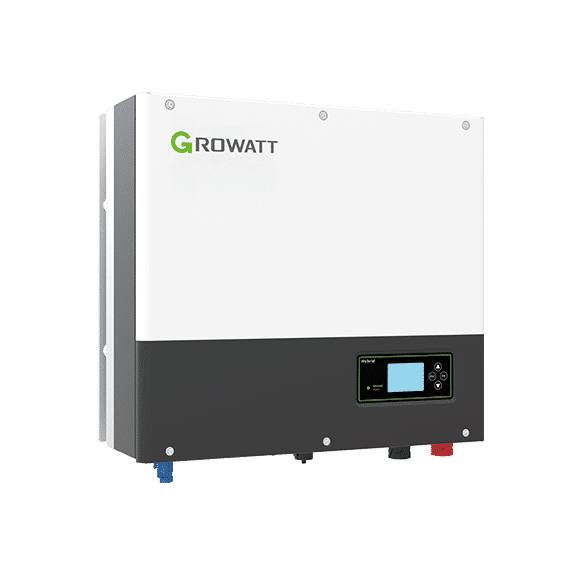

Hybrid inverter Growatt SPA 5000TL3 BH-UP rated 5 kW, three-phase, 2 MPPT. Maximum efficiency 97.8%, European efficiency 97.2%. IP rating IP65, operating temperature −25 to 60 °C. Dimensions 453 × 505 × 198 mm (H × W × D), weight 30 kg, warranty 5 years.
| Series | SPA 4000-10000TL3 BH-UP |
|---|---|
| Product warranty | 5 years |
| Series AC power range | 4-10 kW |
| Max. DC power | 5 kW |
| Max. DC current | 25 A |
| Max. AC power | 5 kW |
| AC output voltage range | 310-476 V |
| Nominal AC voltage | 230/400 V |
| Max. AC current | 7.6 A |
| Frequency range | 45-55 / 55-65 Hz |
| Frequency | 50/60 Hz |
| Power factor | 0.8 leading to 0.8 lagging |
| Maximum efficiency | 97.8 % |
| European efficiency | 97.2 % |
| Operating temperature range | -25 ~ +60 °C |
| IP rating | IP65 |
| Display | LCD/LED |
| Protection features | Anti Island Protection(ENS), Short Circuit Protection, Residual Current Device (RCD), Reverse Polarity Protection, Surge Protection, Ground Fault Monitoring, Isolation Monitoring, Grid Monitoring |
| Inverter type | Hybrid |
|---|---|
| Number of MPPT | 2 |
| Inverter power | 5 kW |
| Number of phases | 3 |
| Height | 453 mm |
|---|---|
| Width | 505 mm |
| Depth | 198 mm |
| Weight | 30 kg |
