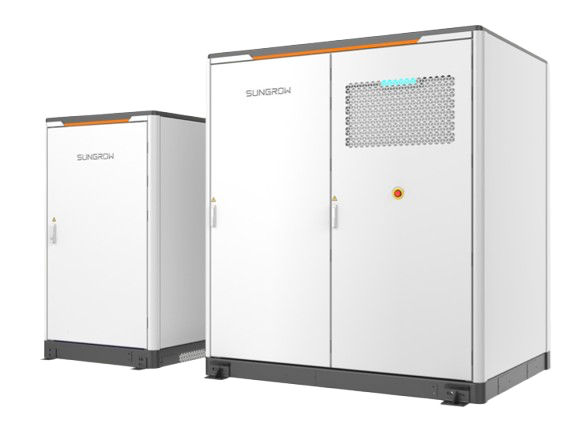

Sungrow 458 kWh ST455kWh-110kW-4h

Sungrow 458 kWh ST455kWh-110kW-4h

Capacity
458.0 kWh
Availability
On order
Minimum order
1 pcs

Price on request

We will check availability and get back to you with this information.

Nothing to pay now.

Description

LOWER COST Fully integrated system design with pre-installation and pre-commissioning, to reduce commissioning work on site Innovative AI bionic thermal balance, 33% reduction in all-day system heat loss Balanced heat dissipation by liquid cooling, the cell temperature difference ≤ 2.5 ℃ SAFE AND RELIABLE AI monitoring of cell health with early warning, to manage thermal runaway PACK, RACK, PCS three-level overcurrent protection Three-level fire safety design and accurate early warning of thermal runaway, to prevent fire event EFFICIENT AND FLEXIBLE High-efficiency PCS with max.efficiency 98.5 % Seamless side by side parallel connection SMART AND ROBUST iSolarCloud App or Web cloud monitoring, to provide real-time alarm and troubleshooting solution Near-distal intelligent wireless operation and one-key remote upgrade, to reduce labour O&M cost

Technical data

Product details

SeriesST455kWh-110kW-4h
Min. voltage340 V
Max. voltage440 V
IP ratingIP55
Communication protocolModbus TCP
System type (HV / LV)High voltage (HV)

Main parameters

Capacity458 kWh
Battery voltage400 V
Cell technologyLiFePO4 (LFP)
ApplicationLarge-scale (BESS)

Dimensions and weight

Height2000 mm
Width1200 mm
Length1200 mm
Weight1500 kg
