from 74.49 € 0.126 €/Wp
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

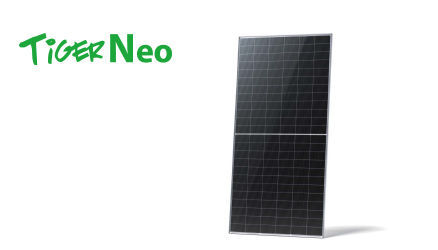

PV module Jinko JKM590N-72HL4-V SF rated 590 Wp. Cells: N-type (144 pcs), monofacial, silver frame, module efficiency 22.84% (STC). Product warranty 12 years, power warranty: 87.4% after 30 years. Dimensions 2278 × 1134 × 30 mm (H × W × D), weight 27 kg.
| Series | JKM580-605N-72HL4-(V)-F8-EN |
|---|---|
| Series power range | 580-605 Wp |
| Warranty | 12 years |
| Power warranty — point 1 (years, % output) | 30, 87.4 |
| Voltage at max. power Vmpp (STC) | 43.71 V |
| Current at max. power Impp (STC) | 13.5 A |
| Open-circuit voltage Voc (STC) | 52.63 V |
| Short-circuit current Isc (STC) | 14.13 A |
| Module efficiency (STC) | 22.84 % |
| Temperature coefficient of Pmax | -0.29 %/°C |
| Temperature coefficient of Voc | -0.25 %/°C |
| Temperature coefficient of Isc | 0.045 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 25 A |
| Number of cells | 144 |
| Glass type | Low-iron tempered glass with anti-reflective coating, high transmission |
| Glass thickness | 3.2 mm |
| Frame | Anodised aluminium alloy |
| Junction box IP rating | IP68 |
| Connector type | JK03M/MC4/Others |
| Cable cross-section | 4 mm² |
| Cable length | (+):400 mm ,(-):200 mm or Customized Length |
| Cell technology | Front contact |
| Module power | 590 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Silver frame |
| Module type | Monofacial |
| Height | 2278 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 27 kg |
