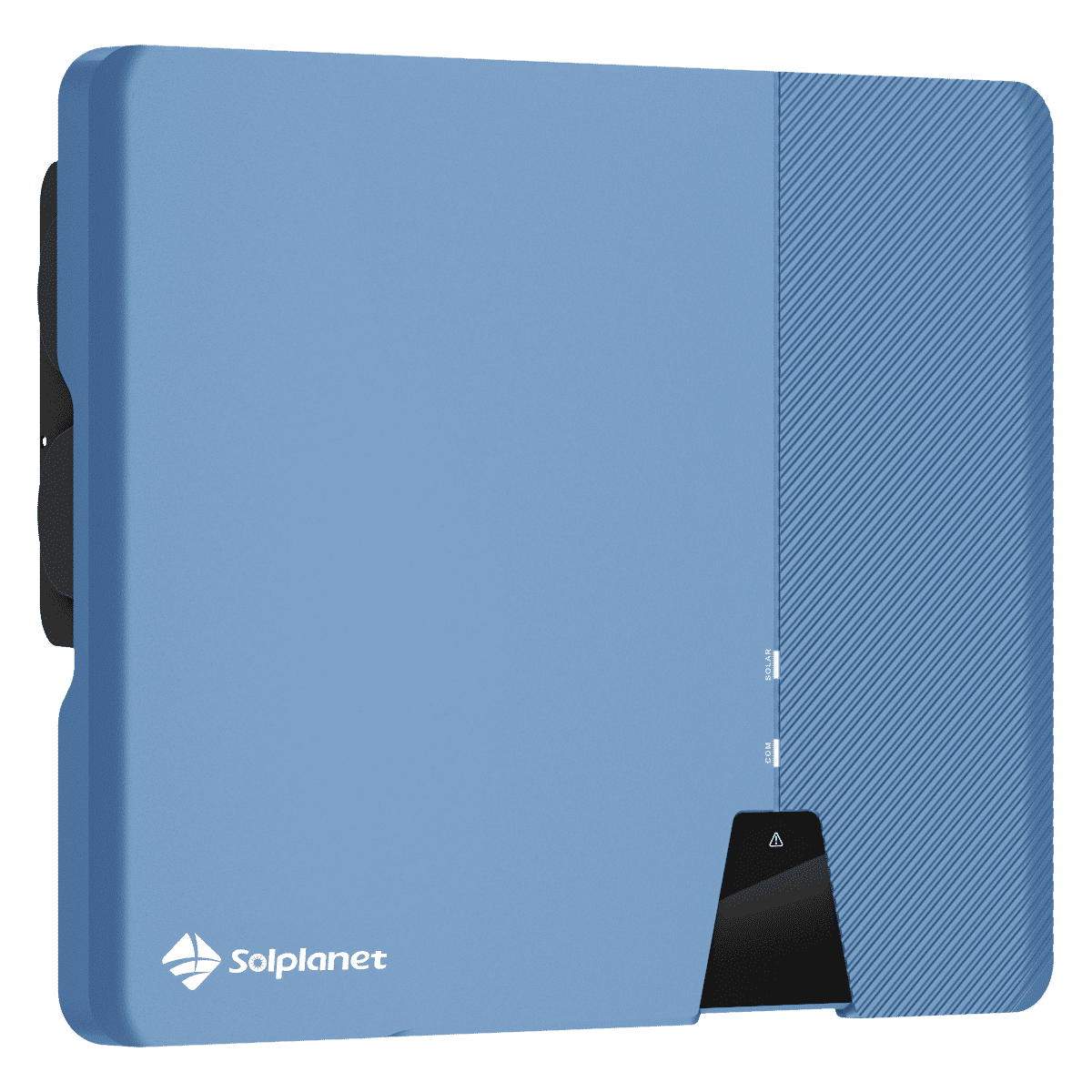

Solplanet 12 kW ASW12K-LT-G2

Power: 12 kW
Phases: 3‑phase
Availability: In stock
: Number of offers: 6
Minimum order: 1 pcs
Incoterms: CIF, EXW, FCA

Downloads

PDF Datasheet — solplanet-asw12k-lt-g2 0.2 MB

Net price by quantity

from 412.35 €

Quantity-tier prices are visible to registered companies.

No payment now. Transport is quoted after you place the order and needs your approval.

Description

On-grid inverter Solplanet ASW12K-LT-G2 rated 12 kW, three-phase, 2 MPPT. Max. DC voltage 1100 V, maximum efficiency 98.6%, European efficiency 98.2%. IP rating IP66, operating temperature −25 to 60 °C. Dimensions 435 × 503 × 183 mm (H × W × D), weight 17.3 kg, warranty 10 years.

Manufacturer information

Toolless DC connection via Phoenix Contact connectors • Quick setup and commissioning with AiSWEI apps • Compact wall mount design • International quality standards • 150 % PV array oversizing for higher yields • IP66 rated design for outdoor use • User friendly app interface • 13 A input current, ideal for bifacial and large area PV modules • Wide MPP voltage range 150V-1000V

Technical data

Product details

Series	ASW LT-G2
Product warranty	10 years
Series AC power range	8-20 kW
Max. DC power	18 kW
Max. DC voltage	1100 V
Max. DC current	26/26 A
Strings per MPPT	2/1
DC inputs	2
Max. AC power	12 kW
AC output voltage range	160-300 V
Nominal AC voltage	220/380; 230/400; 240/415 V
Max. AC current	19.1 A
Frequency range	45-55 / 55-65 Hz
Frequency	50/60 Hz
Power factor	0.8 leading to 0.8 lagging
Maximum efficiency	98.6 %
European efficiency	98.2 %
Operating temperature range	-25 ~ 60 °C
IP rating	IP66
Display	LED indicators
Protection features	DC Switch ● Ground fault monitoring / grid monitoring ● / ● DC reverse polarity protection / AC short circuit protection ● / ● All-pole-sensitive residual-current monitoring unit ● Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1)
