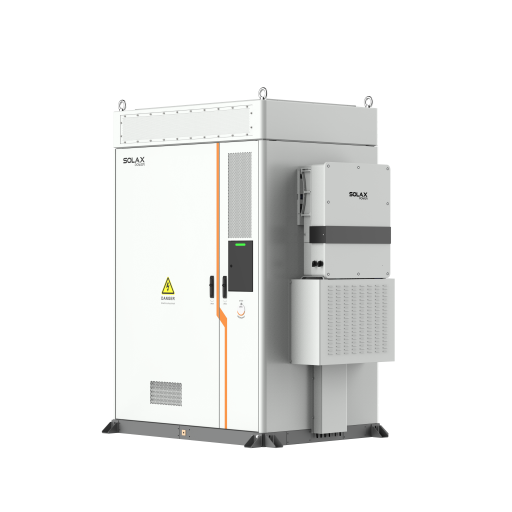

SolaX 200 kWh AELIO-P60B200

SolaX 200 kWh AELIO-P60B200

Capacidad
200,0 kWh
Disponibilidad
En stock
Número de ofertas: 5
Pedido mínimo
1 uds.
Incoterms
EXW

Descargas

Precio neto según la cantidad

desde 43 166,20 €

Los precios por tramos de cantidad son visibles para las empresas registradas.

Por ahora no paga nada. El coste del transporte se cotiza tras realizar el pedido y requiere su aceptación.

Descripción

Sistema de almacenamiento de energía SolaX AELIO-P60B200 con capacidad de 200 kWh, LiFePO4 (LFP), alta tensión (AT). Tensión de funcionamiento 560–817,6 V, grado IP IP55. Aplicación: gran escala (BESS), tensión de la batería 716,8 V. Dimensiones 1200 × 2420 × 2070 mm (alt. × anch. × prof.), peso 2800 kg.

Información del fabricante

Aelio series is a highly integrated, all-in-one, C&I Hybrid energy storage cabinet with multiple application scenarios. It has outstanding advantages such as intelligent charge and discharge management, safety and reliability, and simple operation and maintenance. First of all, Aelio cabinet uses high-density, high-safety, and high-performance LFP batteries. There are two models with capacity of 100kWh and 200kWh. When used in a single cabinet or multiple cabinets, it can charge and discharge stably according to the set working modes at different time periods, and the large-capacity battery cell of 280Ah also reduces the intial cost of the system. Secondly, the cabinet is equipped with a self-developed Energy Management System (EMS) that can monitor the working status and abnormal alerts of each battery cell, PCS, and fire protection system in real-time. The local data storage capability allows for data analysis and verification for up to 1 year. The advanced EMS system also has leading advantages in intelligent control of different smart operation strategies, autonomous scheduling based on local electricity prices, and comprehensive management of photovoltaic, energy storage systems, EV charging and generators at power plant level. These features improve the overall system efficiency and shorten the investment return period. In addition, the cabinet also has multiple safety protection measures. It has built-in protection functions such as overvoltage, overcurrent, and overtemperature. It is also equipped with fireproof materials and 4 levels of fire protection system, which can promptly detect and respond to potential fire risks, effectively control the spread of fires and reduce the risk of safety accidents. The cabinet is suitable for various C&I PV&ESS scenarios, including peak shaving, demand response, backup mode, photovoltaic and energy storage integration, and stable load consumption curves. It also supports applications such as virtual power plants(VPP) and frequency regulation.

Datos técnicos

Detalles del producto

SerieAELIO
Tensión mín.560 V
Tensión máx.817,6 V
Grado de protección IPCabinet: IP55; Inverter: IP66
Tipo de sistema (AT / BT)Alta tensión (AT)

Parámetros principales

Capacidad200 kWh
Tensión de la batería716,8 V
Tecnología de celdasLiFePO4 (LFP)
AplicaciónGran escala (BESS)

Dimensiones y peso

Altura1200 mm
Anchura2420 mm
Longitud2070 mm
Peso2800 kg
