GoodWe GM3000C

Fazės: 3‑fazių
Prieinamumas: Pagal užsakymą
Minimalus užsakymas: 1 vnt.

Atsisiuntimui

PDF Techninis aprašas — goodwe-gm3000c 0,3 MB

Kaina pagal užklausą

Patikrinsime prieinamumą ir grįšime su šia informacija.

Dabar nieko nemokate.

Aprašymas

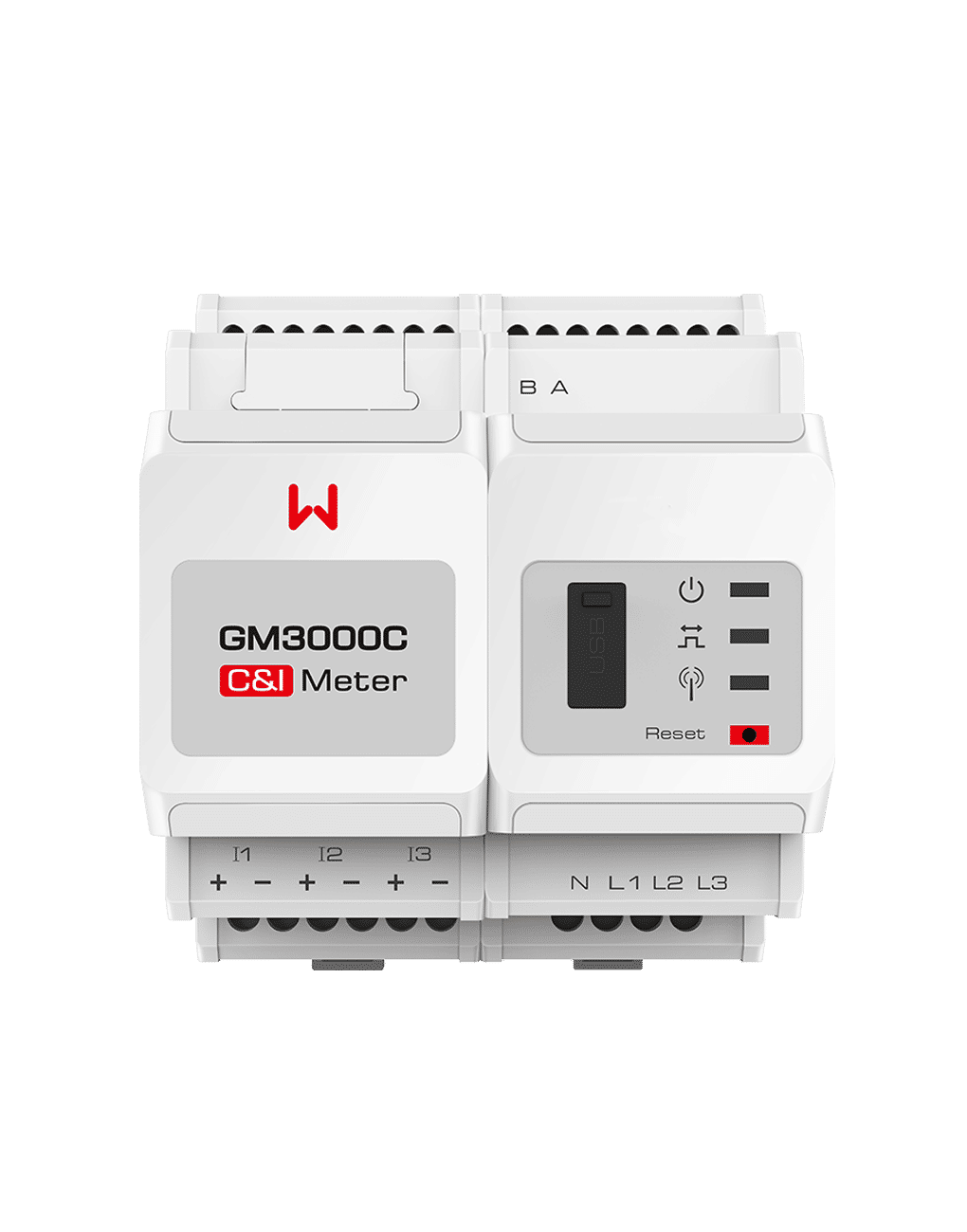

Elektros energijos skaitiklis GoodWe GM3000C, trifazis, montavimas: DIN bėgelis (35 mm). Sąsajos: 3 LED, Reset button, tikslumo klasė 1 klasė.

Gamintojo informacija

GoodWe three-phase smart meter GM3000C has been designed especially to calculate PV system electricity consumption and demand. 3rd-party CTs can be connected to the meter according to the requirements for the installation. The CT ratio can be set in the SolarGo app. Trough RS485 communication, any GoodWe three-phase inverter can connect to the GM3000C and achieve export power control. With a larger detectable range of voltage (100Vac-240Vac) and current, it is the ultimate cost-saving solution for PV systems with large load consumptions. Wide voltage input range Easy installation with external CTs Large detection range of input Configurable CT ratio via APP Export power control Fully compatible with SEMS Portal
