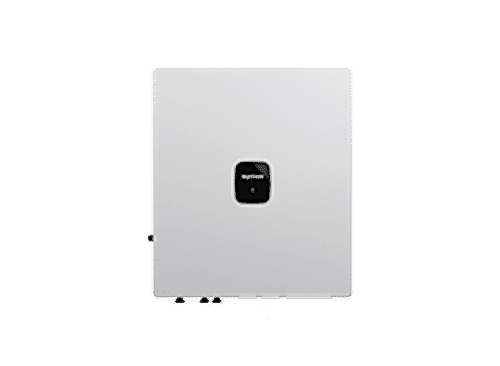

Ingeteam 15 kW 15TL M2

Vermogen: 15 kW
Beschikbaarheid: Op bestelling
: Aantal aanbiedingen: 1
Minimale bestelhoeveelheid: 1 st.

Downloads

PDF Datasheet — 320play20sun20tl20m20series 1,2 MB

Nettoprijs per hoeveelheid

vanaf 1 626,85 €

Prijzen per hoeveelheidstrap zijn zichtbaar voor geregistreerde bedrijven.

U betaalt nu niets. De transportkosten berekenen wij na het plaatsen van de bestelling; deze vereisen uw akkoord.

Beschrijving

Netgekoppelde omvormer Ingeteam 15TL M2 met een vermogen van 15 kW, 2 MPPT. Max. DC-spanning 1100 V, MPP-spanningsbereik 160 tot 1000 V, maximaal rendement 97,8%, Europees rendement 97,4%. IP-klasse IP66. Afmetingen 460 × 398 × 190 mm (h × b × d), gewicht 19,1 kg, garantie 5 jaar.

Informatie van de fabrikant

THREE-PHASE PV INVERTER WITH TWO MPPTs THE BEST SOLUTION FOR COMMERCIAL SELF-CONSUMPTION SYSTEMS A three-phase inverter family for residential and commercial three-phase self-consumption PV systems. Maximum efficiency with two independent MPPT inputs A single DC-to-AC power conversion stage with an advanced maximum power point tracking system (MPPT), making it possible to harness the maximum energy from the PV array at all times, including difficult situations such as scattered clouds and partial shading. Great flexibility for configuring the solar array, thanks to the two independent MPP trackers with a wide input voltage range. Moreover, it enables to connect different DC input powers to each MPP tracker (asymmetric configuration). Plug & Play technology Extremely easy to install. The inverter connection is fast and simple. The country specific configuration and language can be easily selected from the inverter App. Rugged design Die cast aluminum casing, especially designed for indoor and outdoor applications (IP66). The INGECON® SUN 3Play TL M inverters have been designed to guarantee a long life expectancy and to withstand extreme temperatures. Ease of maintenance Internal datalogger for data storage. Control either from a remote PC or on-site setting. Status and alarm LED indicators. Software included Included at no extra cost are the INGECON® SUN Monitor and its smartphone version iSun Monitor for monitoring and recording the inverter data over the internet. In addition, users can download the latest version of the firmware from the Ingeteam website and update it using a simple remote connection. Ethernet and Wi-Fi communications are supplied as standard. Standard 5 year warranty, extendable for up to 25 years.

Technische gegevens

Productdetails

Serie	3 Play SUN TL M Series
Productgarantie	5 jaar
AC-vermogensbereik van de serie	11.2-22 kW
Max. DC-spanning	1100 V
Nominale DC-spanning	620 V
Min. DC-opstartspanning	180 V
Max. DC-stroom	45 A
MPP-spanningsbereik	160-1000 V
DC-ingangen	3
Max. AC-vermogen	16,7 kW
AC-uitgangsspanningsbereik	260-510 V
Nominale AC-spanning	400 V
Max. AC-stroom	75,9 A
Frequentie	50, 60 Hz
Arbeidsfactor	1
Maximaal rendement	97,8 %
Europees rendement	97,4 %
Bedrijfstemperatuurbereik	–20 ~ +65 °C
IP-beschermingsklasse	IP66
Relatieve luchtvochtigheid	0-100 %
Koeling	Natural ventilation
Max. hoogte boven zeeniveau	4000 m
Beveiligingsfuncties	Internal Overvoltage Protection DC Insulation Rsistance Detection Grid Monitoring GFCI Monitoring DCI Monitoring AC Short Circuit Current Protection AC Grounding Detection DC Surge Protection AC Surge Protection Anti-islanding Protection AFCI Protection
