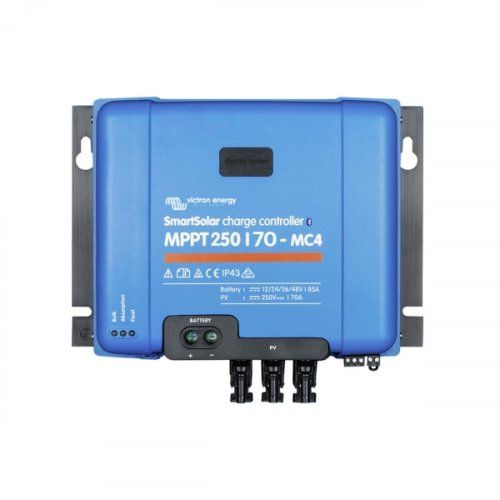

Victron SmartSolar Charge Controller MPPT 250/70 MC4

Beschikbaarheid: Op voorraad
: Aantal aanbiedingen: 4
Minimale bestelhoeveelheid: 1 st.
Incoterms: CIF, EXW, FCA

Downloads

PDF Datasheet — smartsolar20charge20controllers20250v20and20992520efficiency 0,2 MB

Nettoprijs per hoeveelheid

vanaf 396,84 €

Prijzen per hoeveelheidstrap zijn zichtbaar voor geregistreerde bedrijven.

U betaalt nu niets. De transportkosten berekenen wij na het plaatsen van de bestelling; deze vereisen uw akkoord.

Beschrijving

Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP. Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 99%. Flexible charge algorithm Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details). Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor Compensates absorption and float charge voltage for temperature.
