Fronius 15 kW Verto Plus 15.0

Vermogen: 15 kW
Fasen: 3‑fase
Beschikbaarheid: Op voorraad
: Aantal aanbiedingen: 6
Minimale bestelhoeveelheid: 1 st.
Incoterms: EXW, FCA

Downloads

PDF Datasheet — fronius20verto20plus 2,0 MB

Nettoprijs per hoeveelheid

vanaf 3 355,00 €

Prijzen per hoeveelheidstrap zijn zichtbaar voor geregistreerde bedrijven.

U betaalt nu niets. De transportkosten berekenen wij na het plaatsen van de bestelling; deze vereisen uw akkoord.

Beschrijving

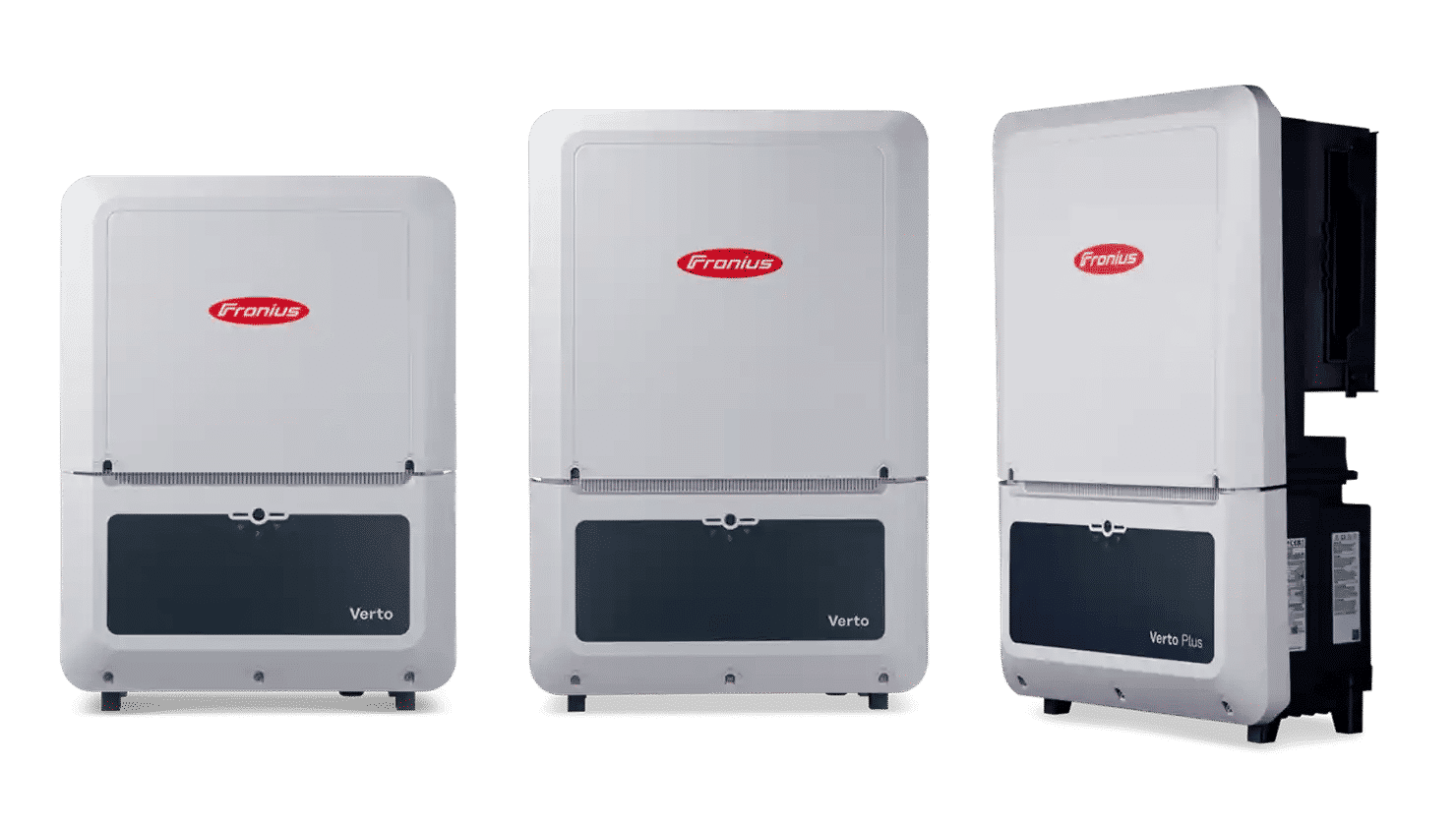

Hybride omvormer Fronius Verto Plus 15.0 met een vermogen van 15 kW, driefasig, 3 MPPT. Max. DC-spanning 1000 V. IP-klasse IP66, bedrijfstemperatuur −25 tot 60 °C. Afmetingen 865 × 574 × 279 mm (h × b × d), gewicht 43 kg.

Informatie van de fabrikant

01 Full Backup Capability When combined with a battery storage system, the Fronius Verto Plus provides a powerful, fully-fleched three-phase emergency power supply for the entire building. It is capable of handling even large loads such as heat pumps, cooling systems, fans or grinders. This makes the Fronius Verto Plus a reliable and safe solution for securing the power supply even in critical situations. 02 Total flexibility The Fronius Verto Plus offers maximum flexibility with three high-current MPP Trackers and a wide voltage range. This makes the inverter ideally suited to complex system designs and all your individual requirements. What’s more, the Fronius Verto Plus uses an integrated Dynamic Peak Manager algorithm that enables users to achieve optimal yields even in shady conditions. 03 Maximum safety With an integrated surge protection device and an Arc Fault Circuit Interrupter (Fronius Arc Guard), the Fronius Verto Plus guarantees the very highest safety standards even in its basic configuration, without the need to pay for additional components. With Fronius, you can also rest assured that your data is in the best hands. This is ensured by our certified information security system and our servers and cloud storage in Europe.

Technische gegevens

Productdetails

Serie	Verto Plus
Max. DC-vermogen	22,5 kW
Max. DC-spanning	1000 V
Max. DC-stroom	150 A
Nominale DC-stroom	28 A
Strings per MPPT	2
DC-ingangen	1
Max. AC-vermogen	15 kW
AC-uitgangsspanningsbereik	380-400 V
Nominale AC-spanning	220/380; 230/400 V
Max. AC-stroom	22,7 A
Nominale AC-stroom	21,7–22,7 A
Frequentiebereik	45-65 Hz
Frequentie	50/60 Hz
Arbeidsfactor	1
Bedrijfstemperatuurbereik	-25 ~ 60 °C
IP-beschermingsklasse	IP66
Beveiligingsfuncties	AFCI - Arc Fault Detection (Arc Guard), DC insulation measurement, Overload behaviour Operating point adjustment. Power limitation, DC disconnector, Reverse polarity protection, RCMU, DC/AC overvoltage protection DC Type 1+2 (IEC 61643-31) / AC Type 2 (IEC 61643-11)
