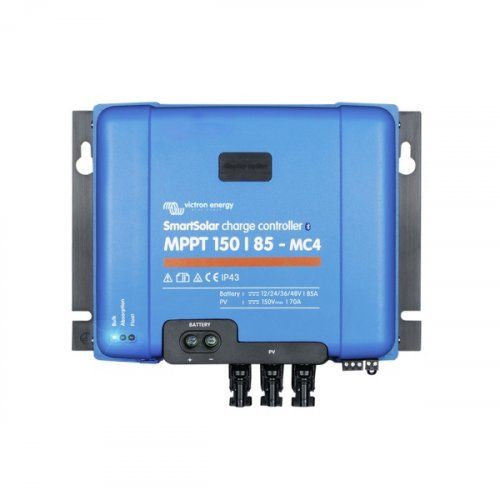

Victron SmartSolar Charge Controller 150/85 MC4

Dostępność: Na zamówienie
: Liczba ofert: 1
Minimalne zamówienie: 1 szt.

Do pobrania

PDF Karta katalogowa — victron-smartsolar-charge-controller-15085-mc4 0,3 MB

Cena netto wg ilości

od 434,72 €

Ceny w progach ilościowych widoczne są dla zarejestrowanych firm.

Teraz nic nie płacisz. Koszt transportu wyceniamy po złożeniu zamówienia; wymaga on Twojej akceptacji.

Opis

Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points may be present on the powervoltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP. Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%. Flexible charge algorithm Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details). Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor Compensates absorption and float charge voltage for temperature. Bluetooth Smart built-in: dongle not needed The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices. VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices Remote on-off To connect for example to a VE.BUS BMS. Programmable relay Can be programmed (a.o. with a smartphone) to trip on an alarm, or other events. Optional: pluggable LCD display Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.
