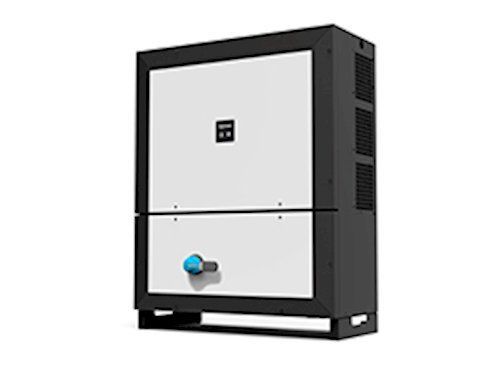

Ingeteam 100 kW 3Play 100TL

Moc: 100 kW
Dostępność: Na zamówienie
: Liczba ofert: 1
Minimalne zamówienie: 1 szt.

Do pobrania

PDF Karta katalogowa — 3play20sun20storage20tl20series20100tl 0,9 MB

Cena netto wg ilości

od 7 062,00 €

Ceny w progach ilościowych widoczne są dla zarejestrowanych firm.

Teraz nic nie płacisz. Koszt transportu wyceniamy po złożeniu zamówienia; wymaga on Twojej akceptacji.

Opis

Falownik sieciowy (on-grid) Ingeteam 3Play 100TL o mocy 100 kW. Maks. napięcie DC 1100 V, sprawność maksymalna 98,8 %, europejska 98,1 %. Stopień ochrony IP65. Wymiary 905 × 720 × 315 mm (wys. × szer. × gł.), waga 80 kg, gwarancja 5 lat.

Informacje producenta

THREE-PHASE TRANSFORMERLESS BATTERY INVERTER WITH THE MAXIMUM POWER DENSITY Three-phase battery inverters for commercial, industrial and large-scale systems. These bidirectional storage inverters feature the same technology as Ingeteam’s central photovoltaic inverters. Lower operational costs Thanks to the wireless communication network that the INGECON® SUN STORAGE 100TL enables, the storage system could be commissioned, monitored and controlled without cables. Moreover, its string inverter philosophy allows for a fast and easy replacement that does not require qualified technicians. Greater flexibility and power density A greater flexibility is possible thanks to its maximum DC voltage (1,100 V) and to its wide input voltage range (570-850 V). Great power density, with 100 kW of power in only 80 kg. Robust and long-lasting design Aluminium casing, especially conceived for outdoor installations (IP65). The design of the INGECON® SUN STORAGE 3Play inverter family guarantees the maximum life expectancy and the best features, even with high temperatures. Ethernet and Wi-Fi as standard This battery inverter features Ethernet and Wi-Fi communications as standard. These communications, together with the webserver that the inverter integrates, allow for a faster and more reliable commissioning by using a mobile phone, tablet or laptop. Furthermore, it is compatible with an external Cloud Connect. EMS Inside The inverter is equipped as standard with an energy management system (EMS). The EMS permits more advanced functionalities, such as self-consumption. Thanks to the built-in EMS, the installation can be monitored at all times via a Smartphone or a PC with the free INGECON® SUN Monitor application, available at the Play Store and App Store. Standard 5 year warranty, extendable upon request.

Dane techniczne

Parametry główne

Moc falownika	100 kW
Typ falownika	Sieciowy (on-grid)

Szczegóły produktu

Seria	3Play SUN STORAGE TL Series 100TL
Gwarancja produktowa	5 lat
Maks. moc DC	60 kW
Maks. napięcie DC	1100 V
Maks. prąd DC	96 A
Maks. moc AC	60 kW
Napięcie znamionowe AC	400 V
Maks. prąd AC	87 A
Częstotliwość	50, 60 Hz
Współczynnik mocy	1
Sprawność maksymalna	98,8 %
Sprawność europejska	98,1 %
Zakres temperatury pracy	–25 ~ +60 °C
Stopień ochrony (IP)	IP65
Wilgotność względna	0-100 %
Chłodzenie	Forced ventilation
Maks. wysokość n.p.m.	3000 m
Zabezpieczenia	Internal Overvoltage Protection DC Insulation Rsistance Detection Grid Monitoring GFCI Monitoring DCI Monitoring AC Short Circuit Current Protection AC Grounding Detection DC Surge Protection AC Surge Protection Anti-islanding Protection AFCI Protection
