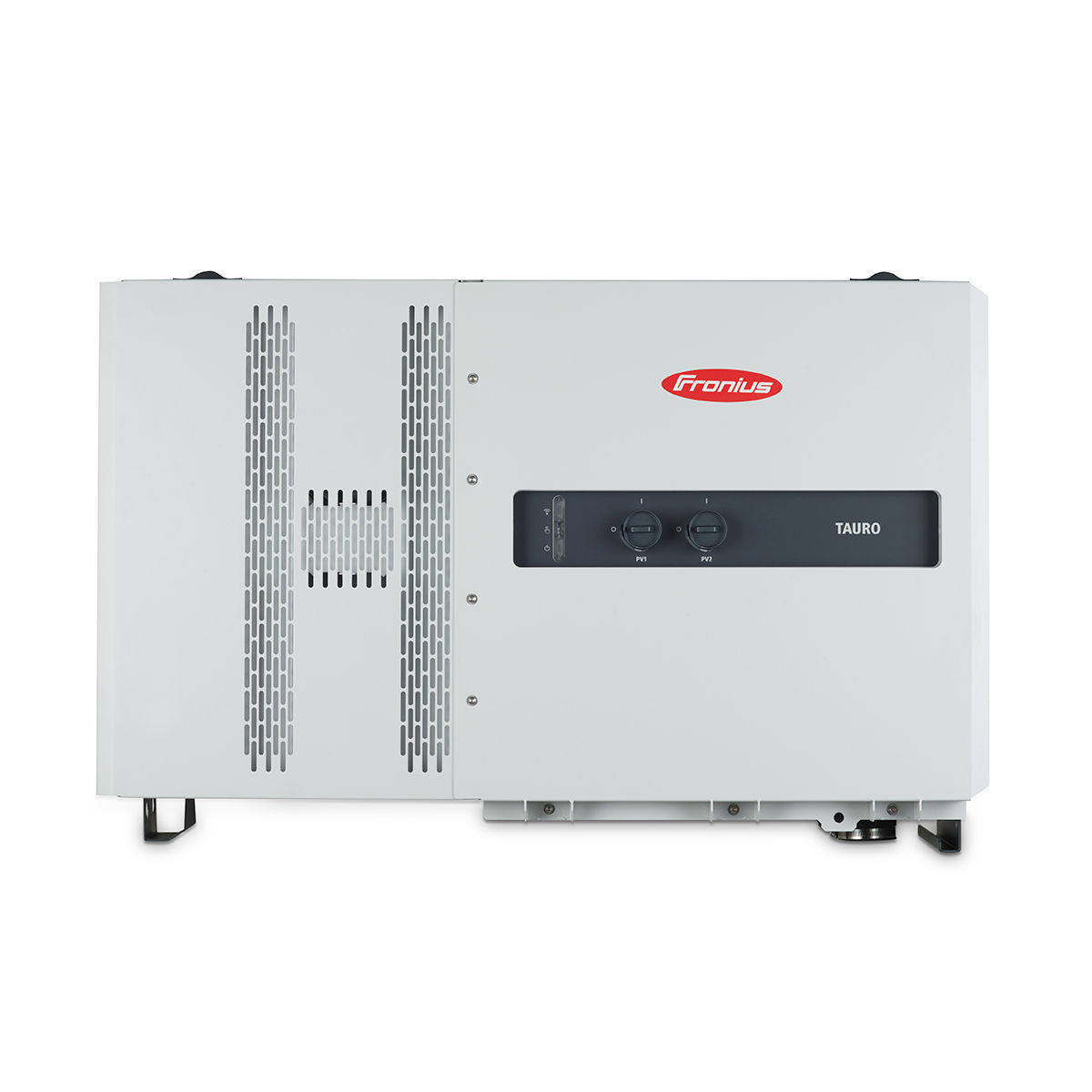

Fronius 50 kW 50-3-P

Fronius 50 kW 50-3-P

Putere
50 kW
Faze
3‑trifazat
Disponibilitate
În stoc
Număr de oferte: 12
Comandă minimă
1 buc.
Incoterms
EXW, FCA

De descărcat

Preț net în funcție de cantitate

de la 3 699,22 €

Prețurile pe praguri de cantitate sunt vizibile pentru firmele înregistrate.

Acum nu plătiți nimic. Costul transportului îl calculăm după plasarea comenzii; acesta necesită acceptul dumneavoastră.

Descriere

Invertor on-grid Fronius 50-3-P cu puterea 50 kW, trifazat, 3 MPPT. Tensiune DC max. 1000 V, eficiență maximă 98,5%, eficiență europeană 98,3%. Grad de protecție IP65, temperatură de operare de la −40 la 65 °C. Dimensiuni 755 × 1109 × 346 mm (Î × L × A), greutate 92 kg, garanție 5 ani.

Informații de la producător

01 Robust and durable Designed to buck direct sunlight and high temperatures: its double-walled housing and active cooling give the Fronius Tauro a long service life and make it a robust commercial solar inverter that will always deliver top performance. 02 Lower costs and efficient servicing For minimal overall system operating costs: Fronius Tauro is quick to install and efficient to maintain. When servicing is required, only the affected power stage set needs to be replaced rather than the entire project inverter. This makes for safe operation and fast, cost-efficient servicing. 03 Intelligent control and an open system Like all Fronius products, Fronius Tauro can be conveniently monitored, controlled and maintained from a smartphone or PC. Fronius Solar.web lets you keep an eye on your system at all times. Its open system architecture means third-party components are easily integrated. 04 Design flexibility Centralised, decentralised, vertical or horizontal: Fronius Tauro offers you maximum flexibility in the design and installation of large-scale PV systems. The flexible Tauro and the cost-effective Tauro ECO can be combined in any way you choose. Pre-integrated surge protection device and AC daisy chaining reduce the need for additional components and cables. 05 Repairable and sustainable Fronius Tauro shows that sustainability at every stage of the product cycle pays dividends. The project inverter is designed for durability and was developed and produced in Austria with the fewest possible, replaceable components. This makes the Tauro particularly robust and failure-resistant, and means that only individual parts need to be replaced during on-site servicing, thereby saving time and conserving resources.

Date tehnice

Detalii produs

SerieTauro
Garanția produsului5 ani
Interval de puteri AC al seriei50 kW
Putere DC max.75 kW
Tensiune DC max.1000 V
Curent DC max.134 A
Șiruri per MPPT1
Putere AC max.50 kW
Tensiune nominală AC380-400 V
Curent AC max.75.8/72.5 A
Interval de frecvență45-65 Hz
Frecvență50/60 Hz
Factor de putere0–1 (inductiv / capacitiv)
Eficiență maximă98,5 %
Eficiență europeană98,3 %
Interval de temperatură de funcționare-40 ~ +65 °C
Grad de protecție IPIP65
Funcții de protecțieInternal Overvoltage Protection DC Insulation Rsistance Detection Grid Monitoring GFCI Monitoring DCI Monitoring AC Short Circuit Current Protection AC Grounding Detection DC Surge Protection AC Surge Protection Anti-islanding Protection AFCI Protection

Parametri principali

Tip invertorOn-grid
Număr de MPPT3
Putere invertor50 kW
Număr de faze3

Dimensiuni și greutate

Înălțime755 mm
Lățime1109 mm
Adâncime346 mm
Greutate92 kg
