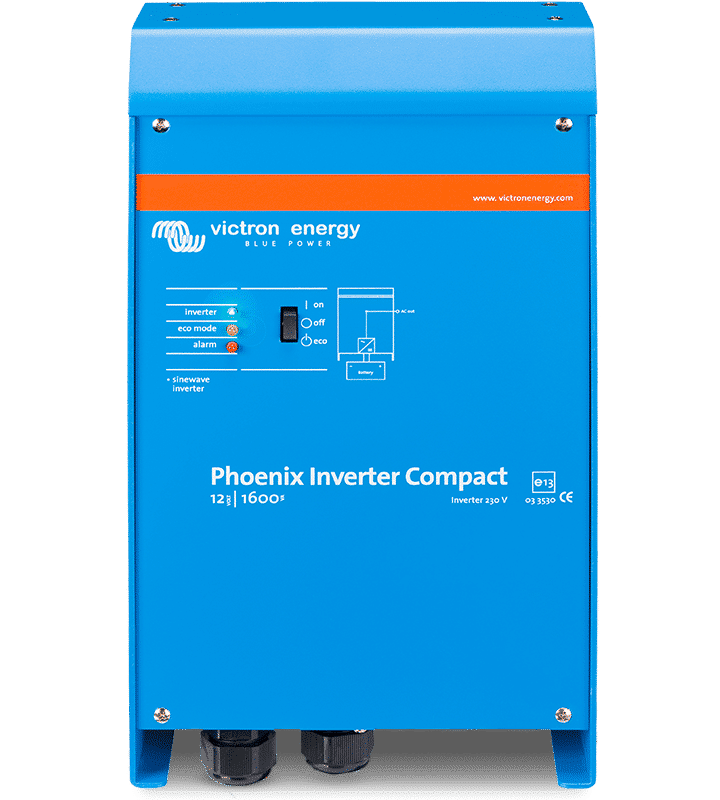

Victron 1,2 kW C12/1200

Výkon: 1,2 kW
Fázy: 1‑fázový
Dostupnosť: Na sklade
: Počet ponúk: 12
Minimálna objednávka: 1 ks
Incoterms: EXW

Na stiahnutie

PDF Katalógový list — victron-c121200-phoenix-inverter-compact-1200va-2000va 0,7 MB

Cena bez DPH podľa množstva

od 298,97 €

Ceny v množstevných stupňoch sú viditeľné pre registrované firmy.

Teraz nič neplatíte. Náklady na dopravu oceníme po podaní objednávky; vyžadujú Váš súhlas.

Popis

Ostrovný menič Victron C12/1200 s výkonom 1,2 kW, jednofázový. Max. jednosmerné napätie 17 V, maximálna účinnosť 92 %. Krytie IP65, prevádzková teplota od −40 do 65 °C. Rozmery 375 × 214 × 110 mm (v × š × h), hmotnosť 10 kg.

Informácie od výrobcu

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact. SinusMax - Superior engineering Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load. These larger Phoenix inverter models come with a VE.Bus port. All you need to connect to your PC is our MK3- USB VE.Bus to USB interface (see under accessories). Together with our VictronConnect or VEConfigure software, which can be downloaded free of charge from our website, parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to a GX device (eg Cerbo GX) for monitoring and control. dimensions, light in weight and capable of supplying power, problem-free, to any load.

Technické údaje

Podrobnosti o produkte

Rad	Phoenix Inverter Compact 1200VA - 2000VA
Záruka na produkt	5 upgradable to 10 rokov
Rozsah AC výkonu radu	2,4-10 kW
Max. DC napätie	17 V
Max. AC výkon	1,2 kW
Menovité AC napätie	230 V
Rozsah frekvencie	45-55 Hz
Frekvencia	50 Hz
Maximálna účinnosť	92 %
Rozsah prevádzkových teplôt	-40 ~ +65 °C
Krytie IP	IP65
Displej	LED
Ochranné funkcie	Short Circuit Protection, Overload Protection, Overvoltage Protection, Overtemperature Protection
